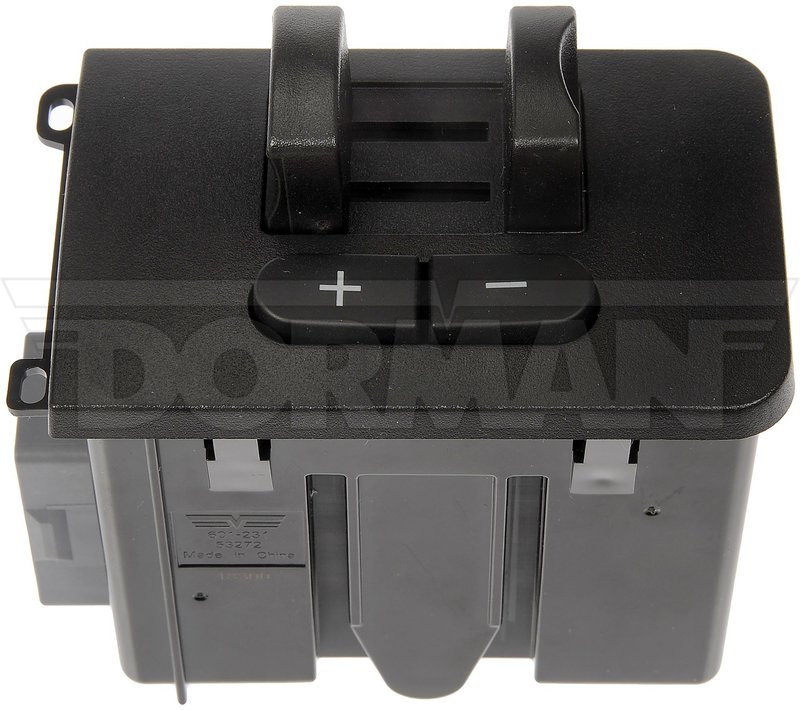

Dorman 601-231 Trailer Brake Control Module

Reliable Trailer Brake Control Module for Ford Super Duty Trucks

The Dorman 601-231 trailer brake control module is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. Engineered to provide consistent trailer braking performance, this module ensures safe and effective control of your trailer's braking system.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• Compact dimensions: 4.2 inches length by 4 inches width
• Durable aluminum and plastic housing for long-lasting protection
• Gray female connector with 14 male blade terminals
• Blade terminal type for secure electrical connections
• Does not include wiring harness
• Part number 601-231 for precise identification

Technical Details and Construction

This trailer brake control module features a robust combination of aluminum and plastic housing materials, providing both strength and resistance to environmental factors. The module measures 4.2 inches in length and 4 inches in width, making it a compact and efficient component for your vehicle's brake control system. It includes a gray female connector designed to interface with 14 male blade terminals, ensuring reliable electrical connectivity. The blade terminal type is commonly used in automotive applications for its durability and ease of installation.

Compatible Vehicles and Application

The Dorman 601-231 trailer brake control module is compatible with Ford F-250 Super Duty and F-350 Super Duty trucks. It is intended for use in trailer brake control systems, helping to regulate the electric brakes on trailers towed by these vehicles. This module is essential for maintaining proper trailer braking function and enhancing towing safety.

• Restores trailer brake control functionality
• Resolves intermittent or non-responsive trailer brakes
• Addresses electrical connection issues in brake control circuits
• Prevents trailer brake failure during towing
• Improves overall trailer braking performance

Installation Notes and Tips

Installation of the Dorman 601-231 trailer brake control module requires basic automotive electrical knowledge. Ensure the vehicle is turned off and the battery is disconnected before beginning installation. The module connects via a gray female connector with 14 male blade terminals; verify connector compatibility before installation. Note that this part does not include a wiring harness, so use the existing harness or source one separately if needed. Properly secure the module to avoid vibration damage and confirm all electrical connections are tight and corrosion-free.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 601-231 trailer brake control module undergoes rigorous quality checks to ensure consistent operation. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation for exact warranty terms.
