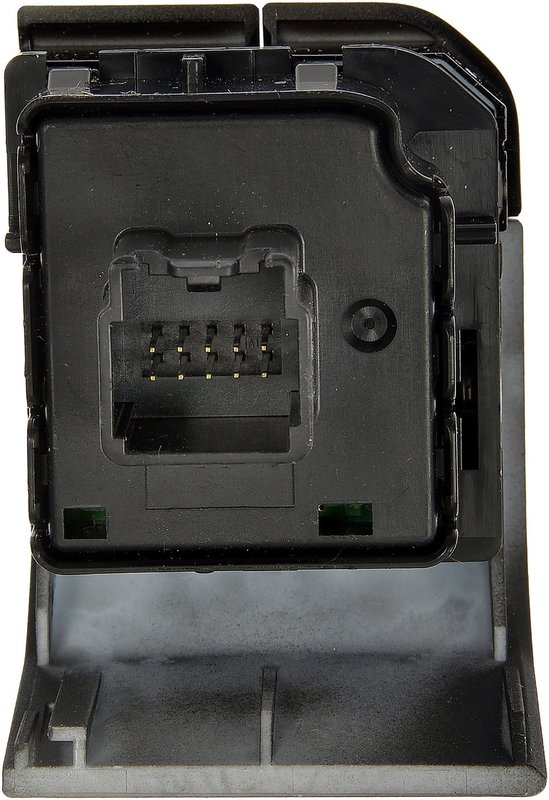

Dorman 601-233 Trailer Brake Control Module

Reliable Trailer Brake Control Module for Ram 1500

The Dorman 601-233 Trailer Brake Control Module is designed specifically for Ram 1500 models, providing precise control and improved safety when towing. Engineered with durable materials and a compact design, this module integrates seamlessly with your vehicle's braking system.

• Compatible with Ram 1500 trucks
• Compact dimensions: 6.5 inches length and width
• Black female connector for secure wiring connections
• 14 male bullet terminals for reliable electrical contact
• Durable plastic housing for long-lasting protection
• Includes bracket, module, switch assembly, nuts, and screws for installation
• Wiring harness not included

Product Details and Specifications

The Dorman 601-233 Trailer Brake Control Module features a plastic housing that protects internal components from environmental damage. Measuring 6.5 inches in both length and width, it fits conveniently within the vehicle's control system. The module uses a black female connector and 14 male bullet terminals, ensuring a secure and stable electrical connection. This part is designed for use with Ram 1500 trucks, providing reliable trailer brake control to enhance towing safety and performance.

Purpose and Common Applications

• Regulates trailer brake activation for safer towing
• Prevents trailer brake lockup during sudden stops
• Improves brake response consistency under load
• Addresses issues with erratic or non-responsive trailer brakes
• Replaces faulty or damaged brake control modules in Ram 1500

Installation Notes and Tips

Installation requires basic automotive electrical knowledge. The module comes with a bracket, switch assembly, nuts, and screws for mounting. Note that the wiring harness is not included and must be sourced separately. Ensure all bullet terminals are properly connected to avoid electrical faults. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards. The 601-233 Trailer Brake Control Module undergoes rigorous quality checks to ensure durability and performance. Please refer to Dorman's warranty policy for coverage details on this part.
