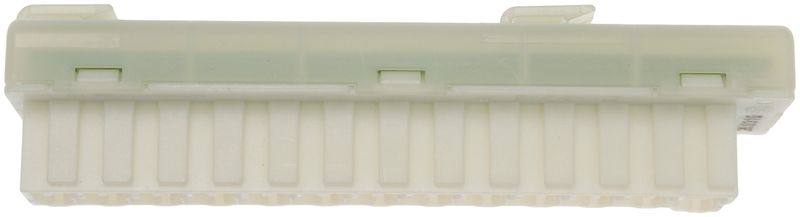

Dorman 601-314 Controller Area Network (CAN) Bus Cap Connector

CAN Bus Cap Connector Overview

Dorman 601-314 is a Controller Area Network cap connector used as a junction box for electronic modules that exchange vehicle data. It is a direct replacement for a failed original connector caused by fatigue, electrical malfunction, collision damage, or moisture intrusion.

Key Features

• Direct replacement CAN bus cap connector for electrical module communication.
• White female connector body with 13 connectors and 27 male terminals.
• Compact housing measures 100 mm long, 25 mm wide, and 30 mm thick.
• Compatible with Chrysler, Dodge, Jeep, and Ram applications listed below.
• Cross-references Mopar 68140647AA for the same application.

Detailed Description

This Dorman 601-314 connector restores the junction point used by the vehicle network to link control units and modules. It is built for applications where the original cap connector has failed from wear, electrical issues, impact damage, or water exposure. Fitment includes 2014-2025 Jeep Cherokee, 2015-2025 Jeep Grand Cherokee, 2017-2025 Chrysler Pacifica, and other Chrysler, Dodge, Jeep, and Ram models listed in the fitment table. The part number 601-314 is also referenced by Mopar 68140647AA.

What It Is Used For

• Replacing a damaged CAN bus connector that interrupts module communication.
• Restoring network connectivity after moisture intrusion.
• Addressing connector failure from fatigue or electrical malfunction.
• Repairing collision-related damage to the junction box connection point.
• Supporting proper data exchange between electronic control modules.

Installation Notes and Tips

Verify connector style, terminal count, and fitment notes before installation. This part is listed for 13-way tan applications across multiple Chrysler, Dodge, Jeep, and Ram vehicles, including Jeep Wrangler, Ram 1500, and Dodge Charger applications. Confirm the original connector condition and mating terminals before replacement. Professional installation is recommended for network-related electrical repairs.

Quality Assurance

Dorman designs replacement electrical components for direct-fit service applications and publishes dimensional and connector specifications to support accurate matching. Part number 601-314 is identified for the listed vehicle applications and interchange reference 68140647AA.
