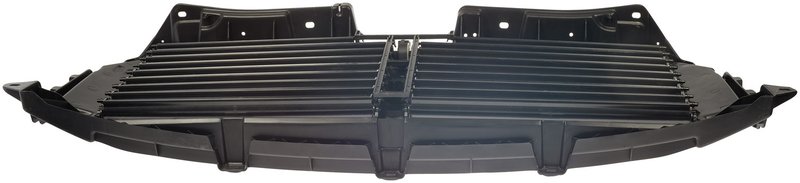

Dorman 601-336 Radiator Shutter Assembly - Upper

Overview of the Dorman Radiator Shutter Assembly

The Dorman 601-336 Radiator Shutter Assembly is designed specifically for Ford F-150 models, providing efficient airflow control to optimize engine cooling. This active grille shutter assembly includes a motor for automatic operation, enhancing your vehicle's thermal management system.

• Constructed from durable black plastic material
• Dimensions: 1235 mm length x 460 mm width for precise fitment
• Includes motor for active grille shutter functionality
• Mounting hardware not included
• Package contains one active grille shutter assembly with motor

Detailed Product Description

The Dorman 601-336 radiator shutter assembly is engineered to fit Ford F-150 trucks, ensuring proper integration with the vehicle's cooling system. Made from sturdy plastic, this black shutter assembly measures 1235 mm in length and 460 mm in width, matching the original equipment specifications. The included motor enables automatic adjustment of the grille shutters, which helps regulate airflow through the radiator based on engine temperature and driving conditions. This functionality contributes to improved fuel efficiency and engine performance by reducing aerodynamic drag when full airflow is unnecessary.

Applications and Problem Solving

• Replaces faulty or damaged radiator shutter assemblies on Ford F-150 models
• Restores proper airflow control to prevent engine overheating
• Improves fuel economy by optimizing aerodynamic efficiency
• Ensures reliable operation of the active grille shutter motor
• Addresses issues related to stuck or non-responsive grille shutters

Installation Notes and Tips

Installation of the Dorman 601-336 radiator shutter assembly requires removal of the front grille and radiator cover. Since mounting hardware is not included, retain original fasteners or source compatible hardware separately. Care should be taken to connect the motor wiring harness securely to ensure proper shutter operation. It is recommended to consult the vehicle’s service manual for detailed installation procedures specific to the Ford F-150.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 601-336 radiator shutter assembly undergoes quality inspections to ensure fit and function. Warranty coverage details can be obtained from Dorman or authorized distributors, typically including limited warranties against defects in material and workmanship.
