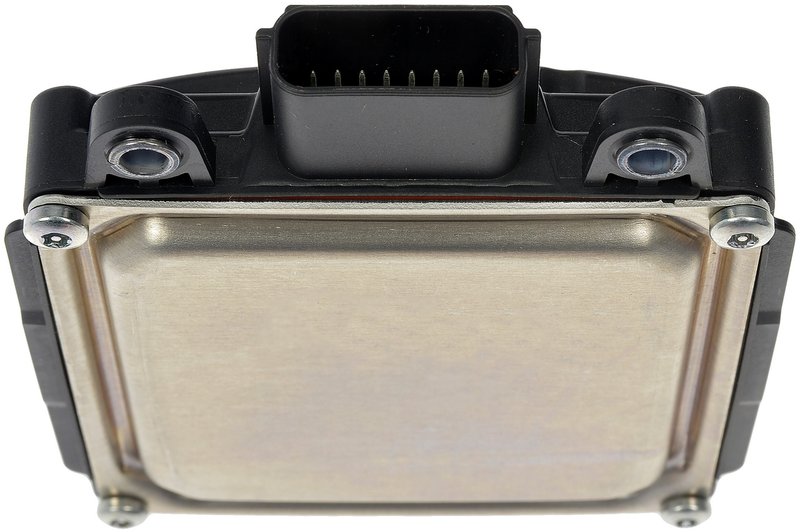

Dorman 601-502 Object Sensor Module

Overview of Dorman 601-502 Blind Spot Detection Module

The Dorman 601-502 object sensor module is designed specifically for blind spot detection systems in select Ford and Lincoln vehicles. Engineered to meet the electrical and lighting control requirements of the Ford Expedition and Lincoln Navigator, this module ensures reliable sensor communication and system functionality.

• Length: 106.5 mm
• Width: 86.7 mm
• Height: 25 mm
• Connector Color: Black
• Terminal Type: Pin with 8 male terminals
• Connector Gender: Male
• Housing Material: Durable plastic
• Wire Harness: Not included
• Package includes one blind spot detection module

Detailed Product Description

The Dorman 601-502 blind spot detection module is a critical component for the electrical control system in Ford Expedition and Lincoln Navigator models. Its compact dimensions (106.5 mm length, 86.7 mm width, and 25 mm height) allow for seamless integration within the vehicle’s sensor network. The module features a black male connector with eight pin-type terminals, ensuring secure and precise electrical connections. Constructed with a durable plastic housing, it provides protection against environmental factors and mechanical stress. This module does not include a wire harness, so installation requires connection to the existing vehicle wiring.

Compatible Vehicles and Applications

This object sensor module is compatible with the following vehicles:

• Ford Expedition
• Lincoln Navigator

It is designed to support the blind spot detection system, enhancing driver awareness by monitoring adjacent lanes and alerting to potential hazards.

Common Issues Addressed by the Dorman 601-502 Module

• Intermittent or non-functional blind spot detection alerts
• Sensor communication errors within the blind spot monitoring system
• Electrical faults causing warning light activation on the dashboard
• Failure of the blind spot detection system to engage properly
• Replacement of damaged or worn sensor control modules

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Expedition or Lincoln Navigator models before installation
• Disconnect the vehicle battery prior to module replacement to prevent electrical shorts
• Verify connector orientation; the module uses a black male connector with pin terminals
• Check existing wiring harness condition as the module does not include a wire harness
• Follow manufacturer guidelines for torque specifications and mounting procedures

Quality Assurance and Warranty

Dorman manufactures the 601-502 blind spot detection module to meet OEM standards for fit, form, and function. The plastic housing and terminal design are engineered for durability and reliable electrical performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
