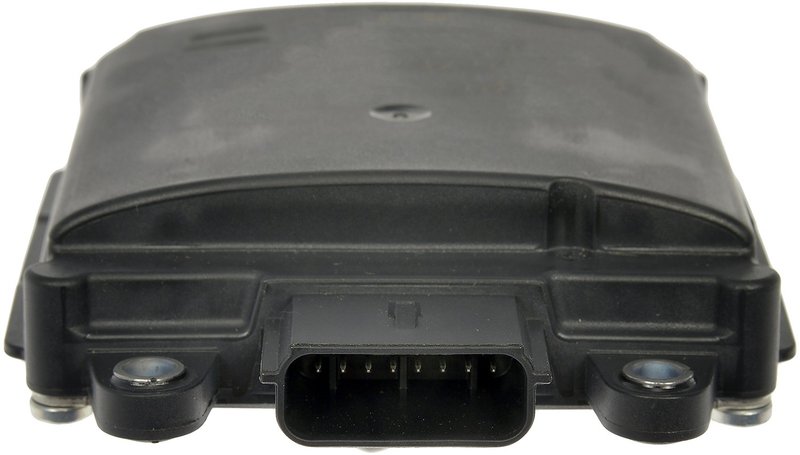

Dorman 601-503 Object Sensor Module

Overview of Dorman 601-503 Object Sensor Module

The Dorman 601-503 object sensor module is designed specifically for Ford Escape models, providing reliable blind spot detection functionality. This control module features a compact design with precise dimensions and durable materials to ensure consistent performance.

• Compatible with Ford Escape vehicles
• Compact dimensions: 4.20 inches length, 0.98 inches width, 3.43 inches height
• Black male connector with 8 male pin terminals
• Durable plastic housing for long-lasting use
• Includes one blind spot detection module, wire harness not included

Technical Specifications and Features

The Dorman 601-503 object sensor module is engineered with an 8-terminal male pin connector, housed in a robust plastic casing. Its black connector color and male gender terminals ensure secure and precise connections within the vehicle's electrical system. The module measures 4.20 inches in length, 0.98 inches in width, and 3.43 inches in height, making it a compact yet essential component for blind spot detection systems in Ford Escape models.

Functionality and Application

This object sensor module is used primarily in the blind spot detection system of Ford Escape vehicles. It helps monitor adjacent lanes and alerts drivers to vehicles in their blind spots, enhancing safety during lane changes and merges.

• Supports blind spot detection system operation
• Helps prevent collisions caused by unseen vehicles
• Improves driver awareness of surrounding traffic
• Maintains proper communication between sensors and vehicle control units
• Replaces faulty or damaged object sensor modules in Ford Escape

Installation Notes and Tips

Installation of the Dorman 601-503 module requires careful handling of the electrical connectors. Ensure the male pin terminals align correctly with the vehicle’s wiring harness. Note that the wire harness is not included with this module and must be sourced separately if needed. Proper installation will maintain the integrity of the blind spot detection system and avoid electrical faults.

Quality Assurance and Warranty

Dorman manufactures this object sensor module to meet OEM standards for fit and function in Ford Escape vehicles. The plastic housing and terminal design contribute to durability and reliable performance. While specific warranty details are not provided here, Dorman products typically come with a limited warranty covering defects in materials and workmanship.
