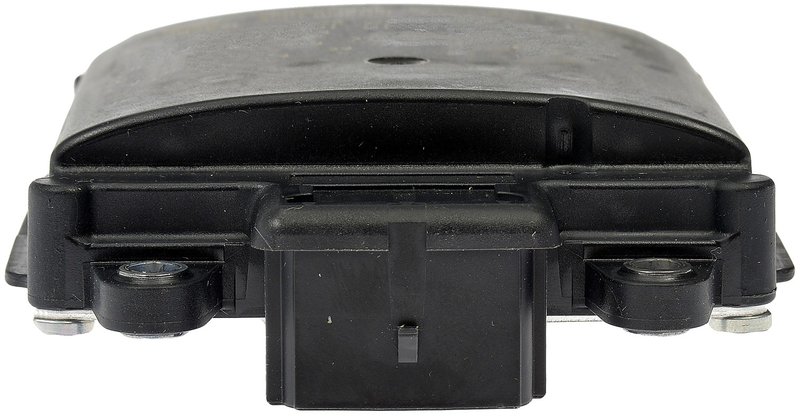

Dorman 601-504 Object Sensor Module

Overview of Dorman 601-504 Blind Spot Detection Module

The Dorman 601-504 blind spot detection module is designed specifically for select Ford vehicles, including the Ranger and Transit series. This control module plays a critical role in enhancing vehicle safety by supporting blind spot monitoring systems.

• Compatible with Ford Ranger, Transit, Transit-150, Transit-250, Transit-350, and Transit-350 HD models
• Compact dimensions: 104.6 mm length, 86.7 mm width, and 25 mm height
• Durable plastic housing for reliable protection
• Black male connector with 8 male pin terminals
• Wire harness not included

Technical Specifications and Features

The Dorman 601-504 module features a robust plastic housing that safeguards the internal electronics from environmental factors. Its connector is black in color and male in gender, equipped with 8 male pin terminals to ensure secure and precise electrical connections. The module measures 104.6 mm in length, 86.7 mm in width, and 25 mm in height, making it a compact and efficient component for integration within the vehicle's electrical system.

Function and Application

This object sensor module is an integral part of the blind spot detection system in compatible Ford vehicles. It helps monitor adjacent lanes and alerts drivers to vehicles in their blind spots, contributing to safer lane changes and overall driving awareness.

• Supports blind spot detection system functionality
• Helps prevent collisions during lane changes
• Improves driver awareness of surrounding traffic
• Reduces risk of side-impact accidents
• Maintains system integrity in Ford Ranger and Transit models

Installation Notes and Tips

Installation of the Dorman 601-504 module requires careful handling of the electrical connectors. Ensure the male black connector with 8 pin terminals is properly aligned and securely connected. Since the wire harness is not included, use the existing vehicle harness for installation. It is recommended to consult the vehicle’s service manual for detailed installation procedures and safety precautions.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The 601-504 blind spot detection module undergoes rigorous quality control to maintain consistent functionality. Warranty coverage details should be verified with the product documentation or supplier.
