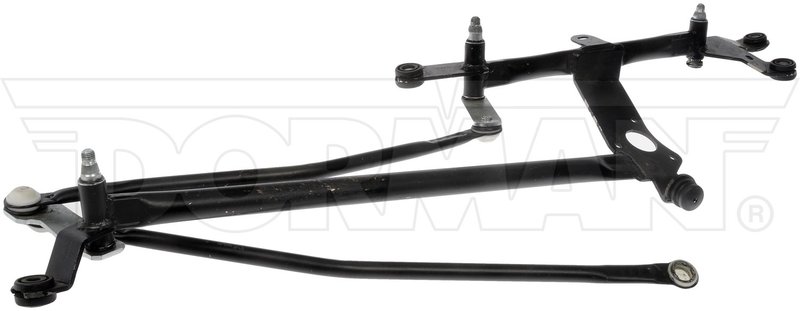

Dorman 602-067 Windshield Wiper Linkage - Front

OE-Style Wiper Linkage for Prius

Dorman 602-067 is a replacement windshield wiper linkage engineered to match the function and performance of the original assembly on select Toyota applications. It is built for front windshield wiper operation and is a direct-fit style solution for restoring mechanical wiper movement on the listed Prius models.

• Fits 2010-2015 Toyota Prius, front, windshield wiper linkage without motor
• Fits 2012-2015 Toyota Prius Plug-In, front, windshield wiper linkage without motor
• Mechanical driver type with clockwise rotation direction
• Two-piece linkage configuration with bracket-style frame
• Bolt-on attachment method for service replacement use
• Standard replacement construction with black finish and steel bushings
• Wiper arm pivot point diameter: 0.358 in.
• Length: 32 in.; material thickness: 0.905 in.

Detailed Product Overview

This Dorman wiper linkage, part number 602-067, is designed for front windshield wiper systems on 2010-2015 Toyota Prius and 2012-2015 Toyota Prius Plug-In models without the motor. It uses a mechanical driver layout and a clockwise rotation path to transfer motion through the wiper transmission, helping restore proper blade sweep when the original linkage is worn or damaged. This part cross-references Toyota 8515047140 for the same application.

Common Problems This Part Can Address

• Wiper arms that no longer move smoothly across the windshield
• Uneven or incomplete blade sweep on the front glass
• Excess play caused by worn linkage joints or bushings
• Noise or binding from a damaged wiper transmission
• Loss of wiper motion after linkage wear on Prius and Prius Plug-In models

Installation Notes and Tips

Verify vehicle fitment by year, make, model, and front position before installation. This assembly is a bolt-on replacement and does not include mounting hardware. Because this listing is for the windshield wiper linkage without motor, transfer or inspect the existing motor and related components as needed during service. Confirm pivot diameter, linkage orientation, and bracket layout against the original part before final assembly.

Quality Assurance

Dorman positions this part as a standard replacement component engineered to match original linkage function on the specified Toyota applications. Part number 602-067 is built for service replacement use on Prius and Prius Plug-In front wiper systems.
