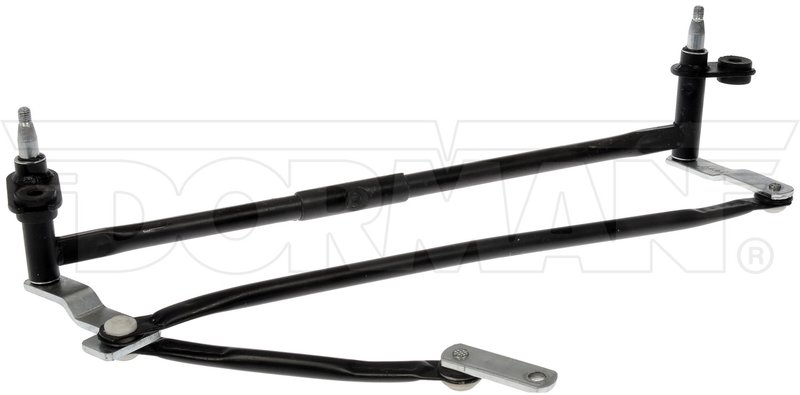

Dorman 602-086 Windshield Wiper Linkage
| Brand | Dorman 602-086 |
|---|---|
| Attachment Method | Bolt On |
| Bushing Material | Steel |
| Color/Finish | Black |
| Configuration | Two Piece |
| Driver Type | Mechanical |
| Item Grade | Standard Replacement |
| Length | 22 |
| Linkage Frame or Bracket | Bracket |
| Material Thickness | 0.765 |
| Mounting Hardware Included | No |
| Package Contents | 1 Wiper Transmission |
| Rotation Direction | Clockwise |
| Universal Or Specific Fit | Universal |
| Wiper Arm Pivot Point Diameter | 0.367 |
| Fits | Hyundai · 4 vehicles |
Standard replacement. Engineered to match original function and performance for reliable wiper operation.
Bolt-on installation. Mechanical design helps make replacement straightforward.
Steel bushings. Durable construction with a black finish for dependable service.
Cross-references 981203Q000 for the same application. See all 1.
Dorman 602-086 Wiper Linkage for Sonata
Dorman 602-086 is a replacement windshield wiper linkage engineered to match the function and performance of the original linkage on select vehicles. It restores mechanical wiper transmission operation for 2011-2014 Hyundai Sonata models when the factory linkage is worn or no longer moving the wiper arms correctly.
Key Features
- Direct replacement wiper linkage for select Hyundai Sonata applications
- Mechanical driver type with clockwise rotation direction
- Two-piece configuration with bracket-style linkage frame
- Bolt-on attachment method for OE-style mounting
- Standard replacement grade for windshield wiper transmission repair
- Black finish with steel bushings for durable service
- Cross-reference part number: 981203Q000
Detailed Description
This Dorman wiper linkage, part number 602-086, is built for 2011-2014 Hyundai Sonata vehicles and is intended to restore proper windshield wiper movement when the original transmission assembly is damaged, loose, or binding. The linkage uses a mechanical driver design, a two-piece configuration, and a bolt-on attachment method to match the original system layout on the listed application. It is a standard replacement wiper transmission with a 22-inch length, a 0.367-inch wiper arm pivot point diameter, and steel bushings for the pivot interface. Dorman 602-086 is a practical repair choice for Hyundai Sonata owners needing a replacement wiper linkage that follows the OE-style fit and function of the factory part.
What It Helps Fix
- Wiper arms that stop moving or move unevenly
- Binding, looseness, or excessive play in the wiper transmission
- Intermittent windshield wiping caused by linkage wear
- Loss of synchronized wiper arm motion
- Noise or resistance from a damaged mechanical linkage
Installation Notes and Tips
Verify vehicle fitment before installation: Fits 2011-2014 Hyundai Sonata, N/A. Confirm the existing linkage layout, pivot diameter, and mounting style match the replacement before removal. Transfer any reusable components as needed and inspect the wiper motor, pivots, and cowl area for wear or corrosion while the linkage is accessible. This part number, 602-086, is designed for direct replacement use on the listed Sonata applications.
Quality Assurance
Dorman engineers this replacement windshield wiper linkage to match the function and performance of the original assembly on select vehicle years, makes, and models. It is built as a standard replacement part for restoring wiper operation on the specified Hyundai Sonata applications.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Hyundai | Sonata | GAS | N/A | — |
| 2013 | Hyundai | Sonata | GAS | N/A | — |
| 2012 | Hyundai | Sonata | GAS | N/A | — |
| 2011 | Hyundai | Sonata | GAS | N/A | — |
