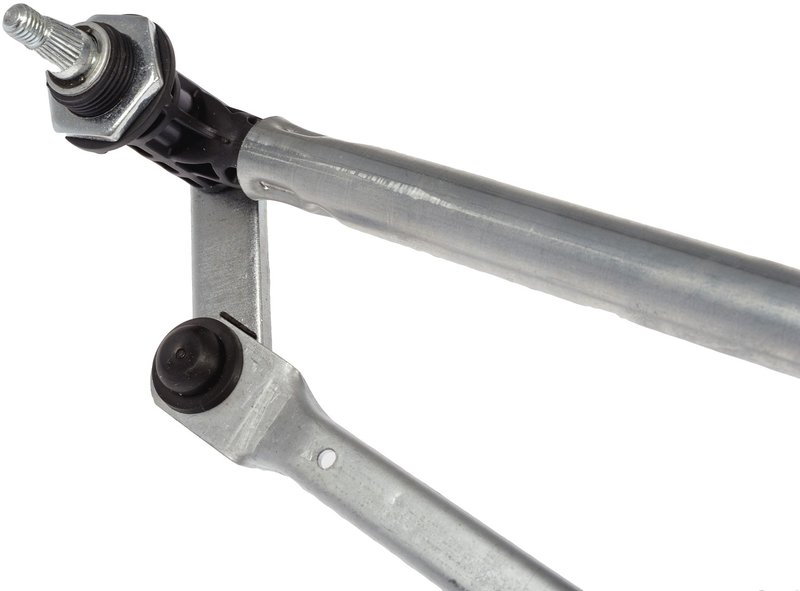

Dorman 602-109AS Windshield Wiper Motor and Linkage Assembly

Wiper Motor and Linkage Assembly for Sprinter

This Dorman wiper motor and linkage assembly restores windshield wiper operation with a direct-fit, standard replacement design. Built for specific applications, it matches the function and performance expected from the original equipment setup on Dodge Sprinter 2500, Dodge Sprinter 3500, and Mercedes-Benz Sprinter models.

• Brand: Dorman
• Part number: 602-109AS
• Specific-fit windshield wiper motor and transmission assembly
• Galvanized steel frame and galvanized steel construction
• Electrical drive with clockwise (right) rotation
• Bolt-on attachment method
• Bracket-style motor mounting
• Rubber bushing material for linkage contact points
• Natural finish
• Package contents: 1 wiper transmission assembly
• Cross-reference part numbers: 5103802AA, 05124570AA

Detailed Product Overview

The Dorman 602-109AS is a windshield wiper transmission or motor assembly for vehicles with failed wiper linkage or motor components. It is built as a one-piece, standard replacement assembly using galvanized steel for the frame and a rubber bushing material to support linkage movement. The electrical motor configuration and clockwise right rotation are matched to the original system layout for the listed Sprinter applications. This part number 602-109AS is a direct replacement choice for 2003-2006 Dodge Sprinter 2500, 2003-2006 Dodge Sprinter 3500, and 2004-2006 Mercedes-Benz Sprinter models.

Common Issues This Part Addresses

• Inoperative windshield wipers
• Intermittent or slow wiper movement
• Broken or worn wiper transmission linkage
• Motor failure in the wiper system
• Excessive play or binding in the wiper mechanism

Installation Notes and Tips

Verify the vehicle’s original mounting style, rotation direction, and pivot point diameter before installation. This assembly uses a bolt-on attachment method and bracket-style motor mounting, so alignment with the existing cowl and linkage points is important. Confirm fitment by year, make, and model before ordering; this part number 602-109AS is listed for 2003-2006 Dodge Sprinter 2500, 2003-2006 Dodge Sprinter 3500, and 2004-2006 Mercedes-Benz Sprinter applications.

Quality Assurance

Dorman manufactures replacement components engineered to match original equipment function and performance for specific vehicle applications. The galvanized steel construction and application-specific design support a consistent OE-style repair for Sprinter wiper system service.
