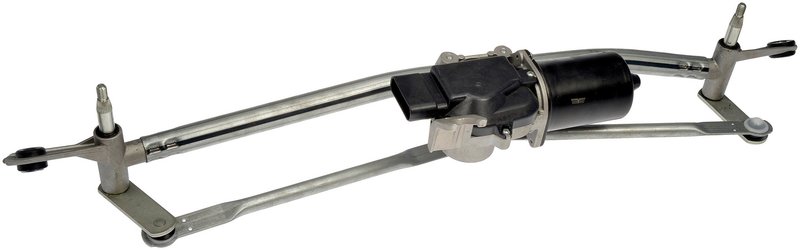

Dorman 602-238AS Wiper Motor and Linkage Assembly - Front
| Brand | Dorman 602-238AS |
|---|---|
| Position | Front |
| Material | Acero |
| Material | Steel |
| Length | 570 |
| Configuration | One piece |
| Configuration | Una pieza |
| Rotation Direction | Clockwise (right) |
| Rotation Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Driver Type | Electrical |
| Driver Type | Eléctrico |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Material Thickness | 0.125 |
| Attachment Method | Bolt |
| Attachment Method | Perno |
| Wiper Arm Pivot Point Diameter | 10 |
| Frame Material | Acero |
| Frame Material | Steel |
| Bushing Material | Caucho |
| Bushing Material | Élastomère |
| Bushing Material | Rubber |
| Color | Plateado |
| Color | Silver |
| Contenidos del paquete | 1 ensamble de la transmisión del limpiaparabrisas y motor |
| Motor Mounting Type | Direct mount |
| Package Contents | 1 wiper transmission and motor assembly |
| Tipo de montaje del motor | Montaje directo |
| Fits | Chevrolet, Pontiac, and Saturn · 9 vehicles |
Direct-mount design. Installs as a single wiper motor and linkage assembly.
Steel construction. Built with a steel frame and steel components for dependable operation.
Bolt attachment. Uses a bolt-on mounting method for secure installation.
Cross-references 15813769 and 19120343 for the same application. See all 2.
Wiper Motor and Linkage Assembly
Restore windshield wiper operation with this Dorman wiper motor and transmission assembly, part number 602-238AS. It is a direct-mount, electric, standard replacement built to match the function and performance of the original equipment design for front wiper systems.
Compatible with select Saturn Vue, Chevrolet Equinox, and Pontiac Torrent front applications, this assembly is a fitment-based solution for drivers needing a complete wiper transmission and motor replacement. The steel construction, rubber bushings, and clockwise right rotation support dependable operation in the intended OE-style layout.
- Brand: Dorman
- Part number: 602-238AS
- Part type: Wiper motor and linkage assembly
- Electric driver type
- Direct mount motor design
- Steel frame and steel material construction
- Rubber bushing material
- Clockwise (right) rotation direction
- Specific fit replacement
- Front application
Detailed Product Overview
Dorman 602-238AS is a brand new windshield wiper transmission and motor assembly designed for vehicles where the original wiper transmission or motor has failed. The assembly is engineered to restore coordinated wiper movement by combining the motor and linkage in one OE-style replacement unit. It uses a bolt attachment method, direct motor mounting, and a one-piece configuration for a straightforward replacement path on the listed front applications. This part number 602-238AS is a practical choice for Saturn Vue, Chevrolet Equinox, and Pontiac Torrent owners needing a replacement that follows the original function and layout.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Inoperative windshield wipers
- Intermittent or erratic wiper movement
- Wiper linkage failure
- Motor failure in the front wiper system
- Reduced wiping performance caused by worn transmission components
Installation Notes and Tips
Verify vehicle fitment by year, make, model, and front position before installation. This assembly uses a specific fit and direct-mount motor design, so confirm the original mounting style, rotation direction, and pivot point diameter match the vehicle’s existing setup. Inspect the wiper arms, pivots, and electrical connector condition during replacement to help ensure proper operation after installation.
Quality Assurance
Dorman supplies this assembly as a standard replacement part intended to match original equipment function and performance for the listed applications. The steel construction and OE-style configuration support a repair focused on restoring normal windshield wiper operation.
Fits 2002-2007 Saturn Vue, front. Fits 2005-2006 Chevrolet Equinox, front. Fits 2006 Pontiac Torrent, front.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Saturn | Vue | Front | — |
| 2006 | Chevrolet | Equinox | Front | — |
| 2006 | Pontiac | Torrent | Front | — |
| 2006 | Saturn | Vue | Front | — |
| 2005 | Chevrolet | Equinox | Front | — |
| 2005 | Saturn | Vue | Front | — |
| 2004 | Saturn | Vue | Front | — |
| 2003 | Saturn | Vue | Front | — |
| 2002 | Saturn | Vue | Front | — |
