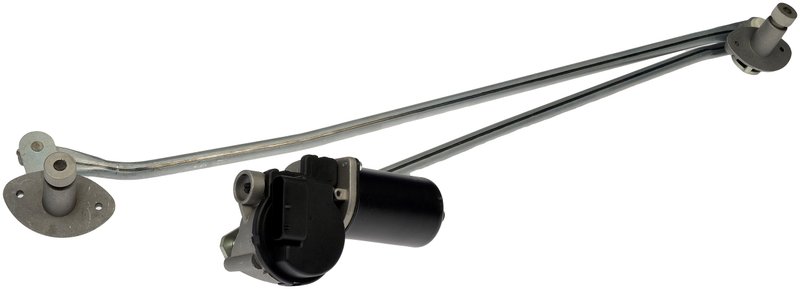

Dorman 602-306AS Wiper Motor and Linkage Assembly

Reliable Wiper Motor and Linkage Assembly for Ford E-Series

The Dorman 602-306AS wiper motor and linkage assembly is designed specifically for Ford E-150, E-150 Club Wagon, E-150 Econoline, E-250, E-350 Club Wagon, E-350 Econoline, and E-350 Super Duty models. Engineered with durable steel components and an electrical driver, this assembly ensures consistent windshield wiper performance under various driving conditions.

Key Features of the Dorman 602-306AS Wiper Motor Assembly

• Constructed from high-quality steel for strength and longevity
• Multi-piece configuration for precise movement and fit
• Clockwise (right) rotation direction matching OEM specifications
• Electrical driver type for reliable motor operation
• Specific fitment for Ford E-Series vans and trucks
• Motor mounting via bracket for secure installation
• Attachment method uses bolts for firm linkage connection
• Metal bushing material enhances durability and reduces wear
• Wiper arm pivot point diameter of 10 mm for accurate fit
• Standard replacement grade meeting OEM standards

Detailed Product Description

The Dorman 602-306AS wiper motor and linkage assembly is crafted from steel with a material thickness of 0.125 inches, providing a robust frame and linkage system. Its multi-piece design allows for smooth and synchronized wiper arm movement, essential for clear visibility during adverse weather. The motor rotates clockwise (right), consistent with the original equipment on compatible Ford E-Series vehicles. This assembly is electrically driven and mounts securely using a bracket, ensuring stable operation without vibration or misalignment. The metal bushings reduce friction and extend the lifespan of the linkage components. With a length of 784 mm, this assembly fits precisely within the designated mounting points of the specified Ford models.

Common Applications and Problem Resolution

• Replaces worn or non-functioning wiper motors in Ford E-150 and E-350 Econoline vans
• Restores proper wiper arm movement and synchronization
• Eliminates issues with intermittent or failed wiper operation
• Addresses linkage wear causing uneven or incomplete wiping
• Solves motor rotation problems affecting windshield visibility

Installation Notes and Tips

Installation requires removal of the existing wiper motor and linkage assembly. Ensure the mounting bracket and bolt attachment points are clean and free of corrosion before installation. Align the wiper arm pivot point accurately to avoid binding or uneven wiping. Since mounting hardware is not included, retain original bolts or source compatible fasteners. Electrical connections should be checked for corrosion and secure fit to maintain reliable motor function.

Quality Assurance and Warranty

Dorman manufactures this wiper motor and linkage assembly to meet standard replacement grade specifications, ensuring compatibility and durability for Ford E-Series vehicles. While specific warranty details are not provided, Dorman products typically undergo quality control testing to comply with industry standards for automotive replacement parts.
