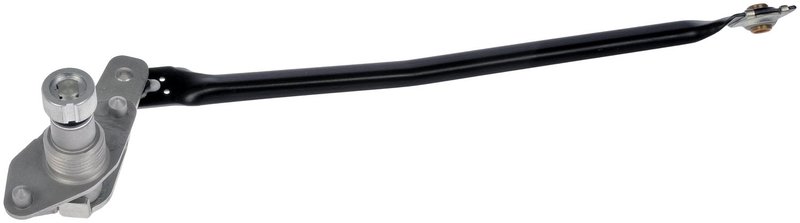

Dorman 602-322 Windshield Wiper Linkage - Left
OE Quality 60-Day Returns
Dorman

Dorman 602-322 Windshield Wiper Linkage - Left

Brand Dorman 602-322
Position Left
Fits Ford and Mercury · 33 vehicles

OE-style replacement. Engineered to match original linkage function and performance.

Steel bushings. Durable construction with a black finish.

Screw-on attachment. Specific-fit linkage for a straightforward install.

Cross-references F77Z17567BA for the same application. See all 1.

$40.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $40.57
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Windshield Wiper Linkage options

Wiper Linkage for Ford Ranger and Explorer

Dorman 602-322 is a premium windshield wiper linkage built to restore wiper motion on select Ford and Mercury applications. It is engineered to match the function and performance of the original linkage, making it a direct-fit replacement for vehicles with worn or damaged wiper transmission components.

  • Premium-grade replacement wiper linkage
  • Specific fit for select Ford Ranger, Explorer, Explorer Sport Trac, Explorer Sport, and Mercury Mountaineer applications
  • Black finish with steel bushing material
  • Attachment method: screw-on
  • Designed for left-side pivot and link applications
  • Package contents: 1 wiper transmission

Detailed Product Overview

This Dorman wiper linkage, part number 602-322, is a specific-fit windshield wiper transmission for select 1997-2011 Ford Ranger, Ford Explorer, Ford Explorer Sport Trac, Ford Explorer Sport, and Mercury Mountaineer models. It is built to restore the mechanical connection between the wiper motor and the wiper arms, helping return proper sweep and consistent windshield clearing. This part cross-references Ford OE number F77Z17567BA for the same application.

Compatible With: Fits 2004-2011 Ford Ranger, left; Fits 2001-2005 Ford Explorer Sport Trac, left; Fits 2003 Ford Explorer Sport, left; Fits 2002-2003 Ford Ranger, left; Fits 1997-2000 Ford Ranger, left; Fits 2001-2002 Ford Explorer Sport, left; Fits 1998-2001 Ford Explorer, left; Fits 2001 Ford Ranger, left; Fits 1998-2001 Mercury Mountaineer, left; Fits 1997 Ford Explorer, left; Fits 1997 Mercury Mountaineer, left.

Common Problems This Part Can Address

  • Wipers that stop moving or move intermittently
  • Loose, worn, or broken linkage joints
  • Uneven wiper sweep across the windshield
  • Noise or binding from the wiper transmission area
  • Loss of wiper arm synchronization on the left-side linkage

Installation Notes and Tips

Verify the vehicle year, make, model, and left-side configuration before ordering. Some Ranger applications note that when replacing an original 3/4-inch pivot with a 1-inch replacement pivot, a new wiper arm is required. This part uses a screw-on attachment method and is intended for specific-fit applications only.

Quality Assurance

Dorman engineers this replacement linkage to match the original part’s function and performance on select vehicles. The premium construction, steel bushing material, and OE-reference fitment support a direct replacement approach for restoring windshield wiper operation.

Related reading

This part fits 33 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2011FordRangerLeftPivot; Link
2010FordRangerLeftPivot; Link
2009FordRangerLeftPivot; Link
2008FordRangerLeftPivot; Link
2007FordRangerLeftPivot; Link
2006FordRangerLeftPivot; Link
2005FordExplorer Sport TracLeftPivot; Link
2005FordRangerLeftPivot; Link
2004FordExplorer Sport TracLeftPivot; Link
2004FordRangerLeftPivot; Link
2003FordExplorer SportLeftPivot; Link
2003FordExplorer Sport TracLeftPivot; Link
2003FordRangerLeftPivot; Link; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
2002FordExplorer SportLeftPivot and Link
2002FordExplorer Sport TracLeftPivot; Link
2002FordRangerLeftPivot; Link; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
2001FordExplorerLeftPivot; Link
2001FordExplorer SportLeftPivot and Link
2001FordExplorer Sport TracLeftPivot; Link
2001FordRangerLeftLink; Pivot; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
2001MercuryMountaineerLeft—
2000FordExplorerLeftPivot; Link
2000FordRangerLeftPivot; Link; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
2000MercuryMountaineerLeft—
1999FordExplorerLeftPivot; Link
1999FordRangerLeftPivot; Link; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
1999MercuryMountaineerLeft—
1998FordExplorerLeftPivot; Link
1998FordRangerLeftPivot; Link; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
1998MercuryMountaineerLeft—
1997FordExplorerLeftPivot; Link; From 4/28/97
1997FordRangerLeftPivot; Link; When Replacing An Original Pivot (3/4 In.) w/Replacement Pivot (1 In.) A New Wiper Arm Will Be Required
1997MercuryMountaineerLeftFrom 4/28/97
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
F77Z17567BA
