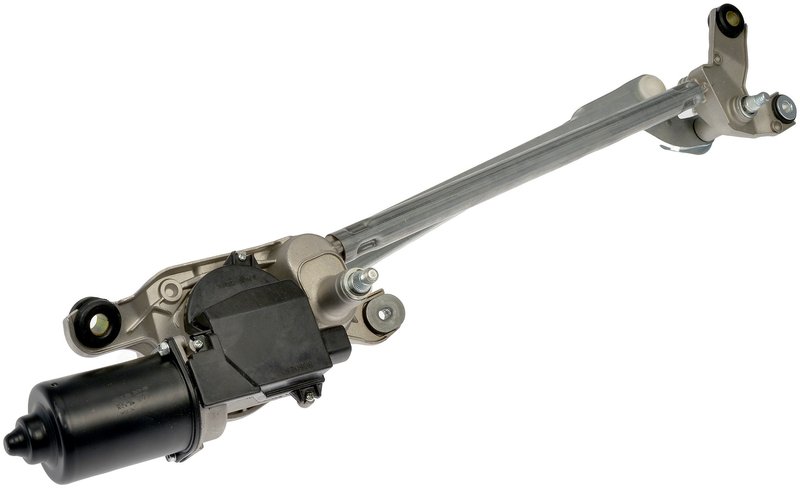

Dorman 602-417AS Wiper Motor and Linkage Assembly

Dorman Wiper Motor and Linkage Assembly 602-417AS

Restore windshield wiper operation on select Toyota Avalon models with this Dorman wiper motor and linkage assembly. Built as a direct-mount, standard replacement, it matches the function and performance of the original system for a straightforward repair.

Fits 2000-2004 Toyota Avalon, N/A. This Dorman 602-417AS assembly is a specific-fit replacement for vehicles with a clockwise (right) motor rotation and electrical drive.

Key Features

• Wiper motor and transmission assembly for a complete repair
• Specific fit for 2000-2004 Toyota Avalon
• Direct-mount motor design for OE-style installation
• Clockwise (right) rotation direction
• Steel frame construction with metal, plastic, and rubber components
• Standard replacement grade for factory-style function
• Bolted attachment method with 10 mm wiper arm pivot point diameter

Detailed Description

The Dorman 602-417AS wiper motor and linkage assembly is engineered to replace a failed windshield wiper transmission or motor with a complete, brand-new unit. It is built for the 2000-2004 Toyota Avalon and uses an electrical driver with direct motor mounting to match the original system layout. The assembly combines steel, metal, plastic, and rubber materials to support dependable wiper movement and consistent operation.

For Toyota Avalon owners searching for a wiper motor and transmission assembly, Dorman 602-417AS provides a specific-fit solution that addresses the motor and linkage together rather than replacing only one worn component. This helps restore proper wiper sweep and system movement when the original transmission or motor has failed.

This part cross-references Cardone Reman 43-2036 for the same application.

Common Problems This Part Can Address

• Inoperative windshield wipers
• Intermittent or slow wiper movement
• Wiper linkage binding or loss of motion
• Motor failure causing no sweep at the windshield
• Uneven or incomplete wiper travel

Installation Notes and Tips

Verify the vehicle application before installation and confirm the clockwise (right) rotation, direct-mount configuration, and pivot diameter match the original assembly. Inspect the wiper arms, linkage points, and electrical connector condition during replacement to help ensure proper operation after installation. Mounting hardware is not included.

Quality Assurance

This Dorman replacement is built as a standard-grade assembly intended to match original equipment function and performance for the listed Toyota Avalon applications. It is supplied as a brand-new wiper motor and transmission assembly.
