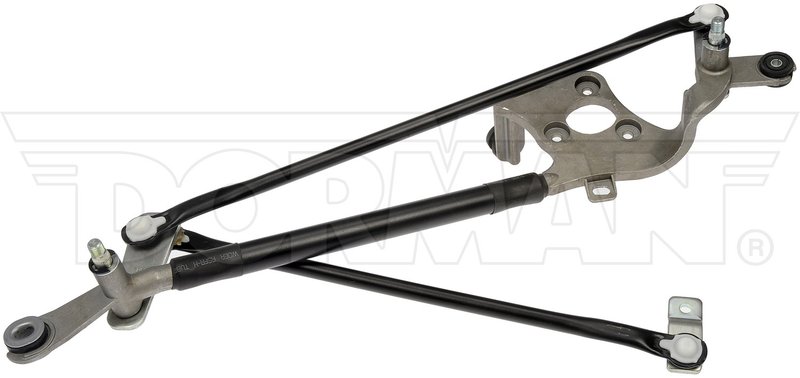

Dorman 602-431 Windshield Wiper Linkage

OE-Style Wiper Linkage for Toyota RAV4

This Dorman windshield wiper linkage is engineered to match the function and performance of the original assembly on select vehicles. It restores mechanical wiper movement for the 2006-2012 Toyota RAV4 when the factory linkage is worn, loose, or no longer operating correctly. Part number 602-431 is a direct-fit replacement built for specific application use.

Key Features

• Direct replacement wiper linkage for select Toyota RAV4 models
• Mechanical, two-piece configuration with bolt-on attachment
• Clockwise rotation direction
• Standard replacement grade for OE-style fit and function
• Black finish with plastic bushings
• Specific-fit design for the listed application
• Cross-reference part numbers include 851100R010 and 851500R010

Detailed Description

Dorman 602-431 is a windshield wiper transmission assembly designed for the 2006-2012 Toyota RAV4. It is built to replicate the original linkage’s movement and mounting style, helping restore proper wiper sweep and consistent windshield coverage. The assembly uses a mechanical driver type, a bracket-style linkage frame, and a bolt-on attachment method for a vehicle-specific installation. Part number 602-431 is intended for the listed RAV4 applications and is not a universal replacement.

This replacement linkage measures 23.5 in length and uses plastic bushings with a 0.38 in wiper arm pivot point diameter. The black finish matches the functional, OE-style construction expected in a standard replacement part. If you are searching for a 2006-2012 Toyota RAV4 wiper linkage, Toyota RAV4 windshield wiper transmission assembly, or Dorman 602-431 replacement linkage, this part addresses those exact needs.

What It Helps Solve

• Intermittent or non-moving windshield wipers
• Loose, worn, or disconnected wiper linkage components
• Uneven wiper sweep across the windshield
• Noisy or binding wiper transmission operation
• Loss of proper wiper arm movement on the Toyota RAV4

Installation Notes and Tips

Verify vehicle fitment before installation by matching the year, make, and model to the listed application. This part uses a specific-fit, bolt-on design and is intended for the 2006-2012 Toyota RAV4. Inspect related wiper system components, including the motor connection and pivot points, before reassembly to confirm the source of the failure. Part number 602-431 should be installed according to the vehicle service procedure for the wiper transmission system.

Quality Assurance

Dorman engineers this replacement windshield wiper linkage to match the function and performance of the original assembly on select applications. It is built as a standard replacement part for the listed Toyota RAV4 fitment and is backed by Dorman’s product engineering focus on OE-style service parts.
