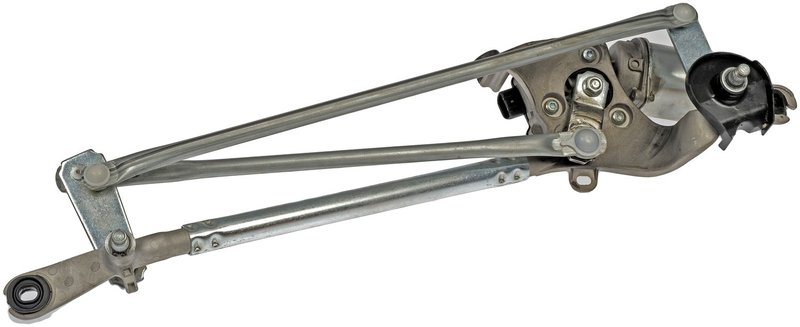

Dorman 602-431AS Wiper Motor and Linkage Assembly - Front
| Brand | Dorman 602-431AS |
|---|---|
| Position | Front |
| Material | Acero |
| Material | Steel |
| Length | 470 |
| Configuration | One piece |
| Configuration | Una pieza |
| Rotation Direction | Clockwise (right) |
| Rotation Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Driver Type | Electrical |
| Driver Type | Eléctrico |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Material Thickness | 0.125 |
| Attachment Method | Bolt |
| Attachment Method | Perno |
| Wiper Arm Pivot Point Diameter | 10 |
| Frame Material | Acero |
| Frame Material | Steel |
| Bushing Material | Caucho |
| Bushing Material | Élastomère |
| Bushing Material | Rubber |
| Color | Natural |
| Contenidos del paquete | 1 ensamble de la transmisión del limpiaparabrisas y motor |
| Motor Mounting Type | Bracket |
| Package Contents | 1 wiper transmission and motor assembly |
| Tipo de montaje del motor | Soporte |
| Fits | Toyota · 9 vehicles |
OE-style replacement. Matches original equipment function and performance for a straightforward repair.
Steel construction. A one-piece assembly with rubber bushings for dependable operation.
Bolt-on installation. Specific-fit design helps simplify replacement.
Cross-references 851100R011, 851500R010 and 8515042150 for the same application. See all 3.
Dorman 602-431AS Wiper Motor Assembly
The Dorman 602-431AS is a windshield wiper transmission and motor assembly built for direct replacement on select Toyota RAV4 models. It restores the function of the front wiper system with a new electrical motor, steel linkage, and specific-fit bracket mounting for a clean repair.
Key Features
- Part number: 602-431AS
- Fits 2006-2014 Toyota RAV4, front
- Specific-fit, standard replacement design
- Electrical drive with clockwise (right) rotation
- Steel frame and steel construction for the transmission assembly
- Rubber bushings for linkage movement
- One-piece configuration with bolt attachment method
- Motor mounts with a bracket-style design
Detailed Description
This Dorman wiper motor and linkage assembly is engineered to replace a failed windshield wiper transmission or motor on the Toyota RAV4. It is built to match original equipment function and performance, helping restore consistent front wiper operation on 2006-2014 Toyota RAV4 vehicles. The assembly uses an electrical motor, steel frame components, and a clockwise right rotation direction to match the application requirements. Part number 602-431AS is a direct-fit solution for front wiper repair, and 602-431AS is also referenced for OE-style replacement needs in this application.
What It Helps Fix
- Inoperative front windshield wipers
- Intermittent or weak wiper movement
- Wiper linkage binding or excessive play
- Motor failure causing no wiper response
- Uneven or incomplete wiper sweep on a Toyota RAV4
Installation Notes and Tips
Verify the vehicle is a 2006-2014 Toyota RAV4 with front wiper application before ordering. Confirm the original motor rotation, mounting style, and linkage layout match the part number 602-431AS. Transfer any vehicle-specific components as needed during installation, and inspect the wiper arms, pivots, and cowl area for wear before reassembly.
Quality Assurance
Dorman supplies this assembly as a brand-new replacement part built to match the function and performance of the original equipment design. The steel construction, specific-fit configuration, and OE-style layout support a direct repair for the front wiper system on the Toyota RAV4.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Toyota | RAV4 | Front | — |
| 2013 | Toyota | RAV4 | Front | — |
| 2012 | Toyota | RAV4 | Front | — |
| 2011 | Toyota | RAV4 | Front | — |
| 2010 | Toyota | RAV4 | Front | — |
| 2009 | Toyota | RAV4 | Front | — |
| 2008 | Toyota | RAV4 | Front | — |
| 2007 | Toyota | RAV4 | Front | — |
| 2006 | Toyota | RAV4 | Front | — |
