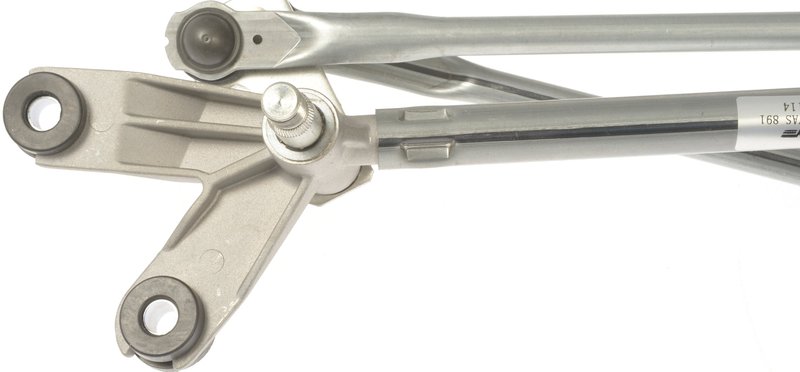

Dorman 602-517AS Wiper Motor and Linkage Assembly
| Brand | Dorman 602-517AS |
|---|---|
| Material | Acero, plástico, goma |
| Material | Plastic |
| Material | Rubber |
| Material | Steel |
| Length | 730 |
| Configuration | Multi piece |
| Configuration | Múltiples piezas |
| Rotation Direction | Clockwise |
| Rotation Direction | En sentido horario |
| Driver Type | Belt |
| Driver Type | Cinturón |
| Terminal Type | Blade pin |
| Terminal Type | Pasador de aspa |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Material Thickness | 0.125 |
| Housing Material | Acero |
| Housing Material | Steel |
| Motor Included | Oui |
| Motor Included | Sí |
| Motor Included | Yes |
| Terminal Quantity | 5 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Terminal Gender | Macho |
| Terminal Gender | Male |
| Fits | Honda · 6 vehicles |
OE-style replacement. Matches original equipment function and performance for a straightforward repair.
Bolt-on installation. Standard replacement with no mounting hardware included.
Steel and plastic construction. Built with rubber bushings and a silver housing for durable operation.
Cross-references 76505S9VA01, 76505S9VA02 and 76505SDAA01 for the same application. See all 5.
Dorman 602-517AS Wiper Motor Assembly
Restore windshield wiping performance with this Dorman wiper motor and linkage assembly. Built as a standard replacement for the original setup, it is made for direct-fit service on the 2003-2008 Honda Pilot and addresses failed transmission or motor operation with a complete assembly solution.
- Brand new wiper motor and transmission assembly
- Specific fit for 2003-2008 Honda Pilot
- Clockwise rotation with belt drive configuration
- 5-terminal male blade-pin electrical connection
- Steel housing and frame with plastic and rubber components
- Bolt-on attachment method for service replacement
- Motor included
Fitment and Application
Compatible with 2003-2008 Honda Pilot models. This Dorman 602-517AS is a fitment-based replacement for drivers needing a windshield wiper motor and linkage assembly for the Honda Pilot platform. If you are searching for a Honda Pilot wiper motor assembly or Dorman 602-517AS replacement, this part matches the listed application.
What It Helps Fix
- Wipers that stop moving or move intermittently
- Failed windshield wiper transmission or linkage operation
- Weak, inconsistent, or non-responsive wiper sweep
- Noise or binding from worn linkage components
- Electrical connection issues at the motor terminal interface
Installation Notes
Verify connector style, terminal count, rotation direction, and mounting layout before installation. This assembly uses a bolt-on attachment method and a male blade-pin terminal design, so matching the original vehicle configuration is important for proper fit. For 2003-2008 Honda Pilot service work, confirm the wiper arm pivot diameter and linkage bracket arrangement against the removed part before final assembly.
Quality Assurance
Dorman supplies this part as a standard replacement assembly intended to match the function and performance of the original equipment design. Part number 602-517AS is built for direct replacement service on the specified Honda Pilot applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2008 | Honda | Pilot | — |
| 2007 | Honda | Pilot | — |
| 2006 | Honda | Pilot | — |
| 2005 | Honda | Pilot | — |
| 2004 | Honda | Pilot | — |
| 2003 | Honda | Pilot | — |
