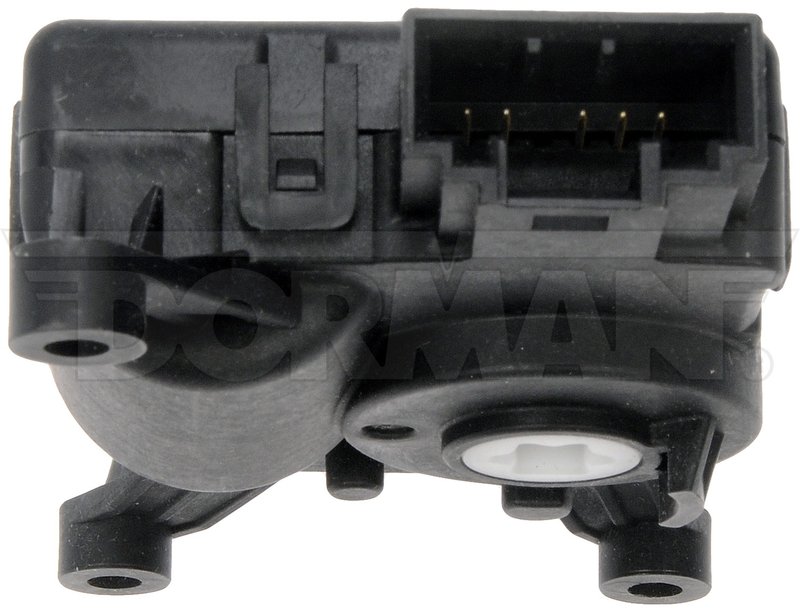

Dorman 604-019 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-019

The Dorman HVAC Blend Door Actuator 604-019 is designed for precise control of airflow temperature in select Fiat and Jeep vehicles. This rotary switch actuator ensures reliable operation within the HVAC system of the Fiat 500X and Jeep Renegade models.

• Rotary switch activation type for smooth and accurate blend door movement
• Five female pin terminals for secure electrical connections
• Durable plastic construction for long-lasting performance
• Includes one air door actuator per package

Detailed Product Description

This HVAC blend door actuator from Dorman features a rotary switch activation type, which allows for precise modulation of the blend door position, controlling the mix of hot and cold air inside the vehicle cabin. The actuator is equipped with five female pin terminals, providing a stable and reliable electrical interface. Constructed from durable plastic materials, this part is engineered to withstand the operational demands of the HVAC system in Fiat 500X and Jeep Renegade vehicles. The part number 604-019 identifies this specific actuator designed to meet OEM specifications for these models.

Compatible Vehicles and Applications

This Dorman HVAC blend door actuator 604-019 is compatible with the following vehicles:

• Fiat 500X
• Jeep Renegade

It is intended to replace faulty or worn blend door actuators that cause issues with temperature control inside the vehicle.

Common Issues Resolved by This Actuator

• Inconsistent cabin temperature due to blend door malfunction
• HVAC system stuck on one temperature setting
• Unusual noises from the HVAC system blend door area
• Failure of the rotary switch to adjust airflow temperature
• Electrical connection problems related to terminal wear or damage

Installation Notes and Tips

• Ensure vehicle compatibility with Fiat 500X or Jeep Renegade before installation
• Disconnect the battery prior to replacing the actuator to avoid electrical shorts
• Handle the plastic actuator carefully to prevent damage during installation
• Verify the five-pin female terminal connections are secure and free of corrosion
• Test the HVAC system after installation to confirm proper blend door operation

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and fitment. The HVAC blend door actuator 604-019 undergoes quality control testing to verify functionality. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
