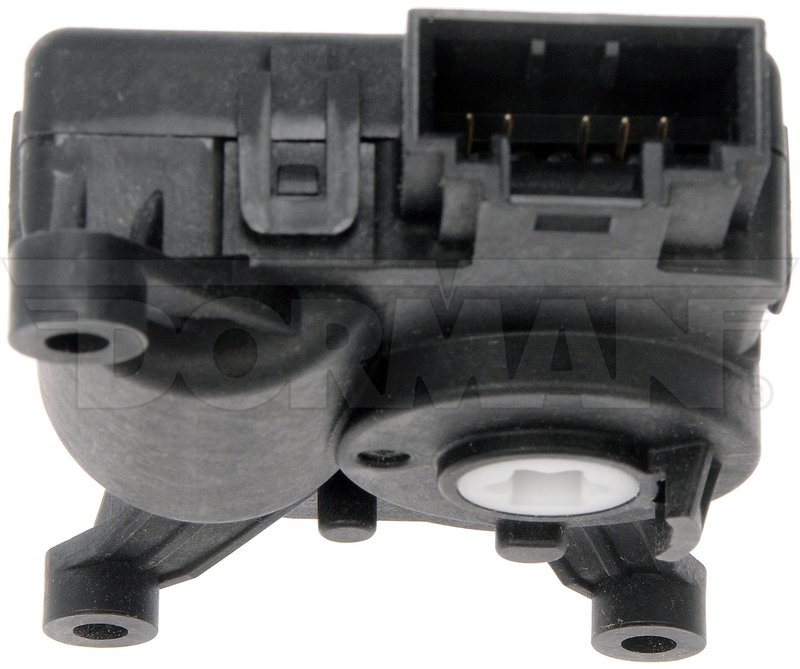

Dorman 604-022 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-022

The Dorman HVAC Blend Door Actuator 604-022 is designed for precise control of airflow temperature in select Fiat and Jeep vehicles. This actuator features a rotary switch activation type and is engineered to meet the specific HVAC needs of the Fiat 500X and Jeep Renegade models.

• Rotary switch activation for smooth and reliable operation
• Five female pin terminals ensuring secure electrical connections
• Durable plastic construction for long-lasting performance
• Compatible with Fiat 500X and Jeep Renegade HVAC systems
• Includes one air door actuator per package

Detailed Product Description

The Dorman 604-022 HVAC Blend Door Actuator is a critical component in the climate control system of the Fiat 500X and Jeep Renegade. It operates using a rotary switch activation type, which allows for precise modulation of the blend door position to regulate cabin temperature effectively. The actuator is equipped with five female pin terminals, providing a reliable electrical interface that ensures consistent communication with the vehicle’s HVAC control module. Constructed from durable plastic, this actuator is designed to withstand the thermal and mechanical stresses typical in automotive HVAC environments.

Common Applications and Problem Resolution

• Restores proper airflow temperature control in Fiat 500X and Jeep Renegade HVAC systems
• Eliminates issues with inconsistent or stuck blend doors
• Resolves problems related to faulty rotary switch activation in climate control
• Addresses electrical connection failures due to terminal wear or damage
• Improves overall HVAC system responsiveness and comfort

Installation Notes and Tips

• Ensure vehicle compatibility with Fiat 500X or Jeep Renegade before installation
• Disconnect the battery prior to actuator replacement to prevent electrical shorts
• Carefully remove the old actuator to avoid damage to the blend door mechanism
• Verify the orientation of the rotary switch and terminal connections during installation
• Test the HVAC system after installation to confirm proper actuator function

Quality Assurance and Warranty Information

Dorman HVAC Blend Door Actuator 604-022 is manufactured to meet OEM specifications for fit, form, and function. The plastic housing and pin terminal design undergo rigorous quality control to ensure durability and reliable performance. This part is backed by Dorman’s standard warranty coverage, providing assurance of its quality and longevity when installed in compatible Fiat 500X and Jeep Renegade vehicles.
