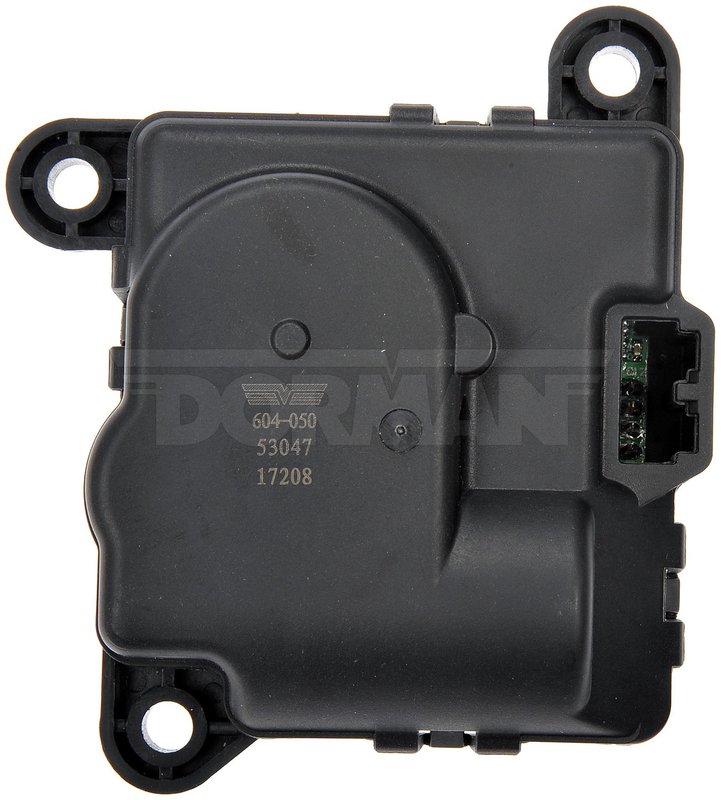

Dorman 604-050 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-050

The Dorman HVAC Blend Door Actuator 604-050 is designed specifically for Jeep Liberty models, providing reliable control of your vehicle's heating and cooling system. This actuator features a rotary switch activation type and durable plastic construction to ensure consistent performance.

• Rotary switch activation for precise HVAC control
• Four male blade terminals for secure electrical connections
• Durable plastic material for long-lasting use
• Compatible with Jeep Liberty HVAC systems
• Includes one air door actuator per package

Detailed Product Description

This HVAC blend door actuator by Dorman, part number 604-050, is engineered to replace the original actuator in Jeep Liberty vehicles. The actuator uses a rotary switch activation type, which allows smooth and accurate adjustment of the blend door position, regulating airflow temperature inside the cabin. It features four male blade terminals that ensure a reliable electrical connection with the vehicle’s wiring harness. Constructed from durable plastic, this actuator is built to withstand the temperature variations and mechanical stresses typical in automotive HVAC systems.

Common Applications and Issues Resolved

• Eliminates inconsistent cabin temperature due to faulty blend door movement
• Resolves HVAC system noise caused by malfunctioning actuators
• Fixes issues with air not properly mixing between hot and cold settings
• Restores proper airflow direction control in Jeep Liberty heating and cooling systems

Installation Notes and Tips

When installing the Dorman 604-050 HVAC blend door actuator, ensure the vehicle is turned off and the battery is disconnected to prevent electrical shorts. Carefully remove the old actuator from the HVAC housing, noting the position of the blend door linkage. Connect the four male blade terminals securely to the wiring harness. Test the actuator operation before reassembling the dashboard components to confirm proper function.

Quality Assurance and Warranty

Dorman manufactures the 604-050 HVAC blend door actuator to meet or exceed OEM specifications for fit, form, and function. The plastic housing and electrical terminals are designed for durability in automotive environments. This part is backed by Dorman’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
