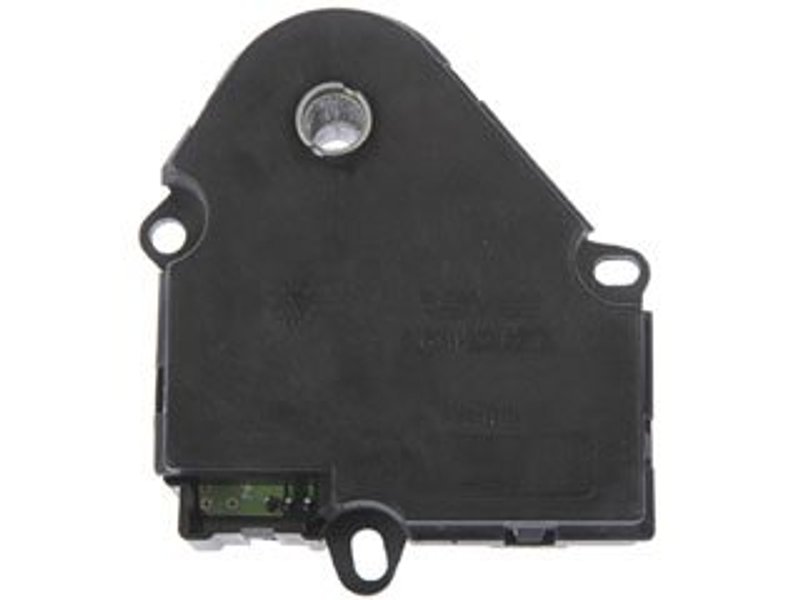

Dorman 604-120 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-120

The Dorman HVAC Blend Door Actuator 604-120 is designed to provide reliable control of the airflow blend doors in your vehicle's heating and cooling system. This rotary switch actuator is compatible with a range of GM and Isuzu models, ensuring precise temperature regulation inside your cabin.

• Rotary switch activation type for smooth operation
• Durable plastic construction for long-lasting performance
• Includes the actuator unit only
• Compatible with multiple Buick, Cadillac, Chevrolet, GMC, Isuzu, and Oldsmobile vehicles
• OEM-quality replacement part number 604-120

Detailed Product Description

The Dorman 604-120 HVAC Blend Door Actuator features a rotary switch activation type, which allows for accurate positioning of the blend door to regulate the mix of hot and cold air in the HVAC system. Constructed from durable plastic materials, this actuator is engineered to withstand the thermal and mechanical stresses typical in automotive HVAC applications. It is designed as a direct replacement for factory-installed actuators on select Buick, Cadillac, Chevrolet, GMC, Isuzu, and Oldsmobile models, including popular vehicles such as the Chevrolet Silverado 1500, GMC Sierra 2500 HD, Cadillac Escalade, and Isuzu Ascender.

Compatible Vehicles and Common Applications

This HVAC blend door actuator is compatible with a variety of GM and Isuzu vehicles, including:

• Buick Rainier
• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche 1500, Avalanche 2500, Silverado 1500, Silverado 2500, Silverado 3500, Suburban 1500, Suburban 2500, Tahoe
• GMC Sierra 1500, Sierra 2500, Sierra 3500, Yukon, Yukon XL 1500, Yukon XL 2500
• Isuzu Ascender, Bravada, Envoy, Envoy XL, Envoy XUV
• Oldsmobile Prizm

Common HVAC Issues Resolved by This Actuator

• Inconsistent cabin temperature due to blend door malfunction
• Failure to switch between hot and cold air settings
• Unusual noises from the HVAC system blend door area
• HVAC system stuck on one temperature setting
• Loss of airflow control within the vehicle's heating and cooling system

Installation Notes and Tips

Installation of the Dorman 604-120 blend door actuator typically requires removal of the dashboard or glove box panel to access the HVAC housing. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical issues. Align the actuator's rotary switch correctly with the blend door shaft to avoid damage. Refer to the vehicle-specific service manual for detailed instructions and torque specifications. Testing the actuator operation before reassembling the dashboard is recommended to confirm proper function.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and fitment. The 604-120 blend door actuator undergoes quality control inspections to ensure durability and functionality. This part is backed by Dorman's limited warranty, covering defects in material and workmanship under normal use conditions. For specific warranty details, consult the product documentation or Dorman's official resources.
