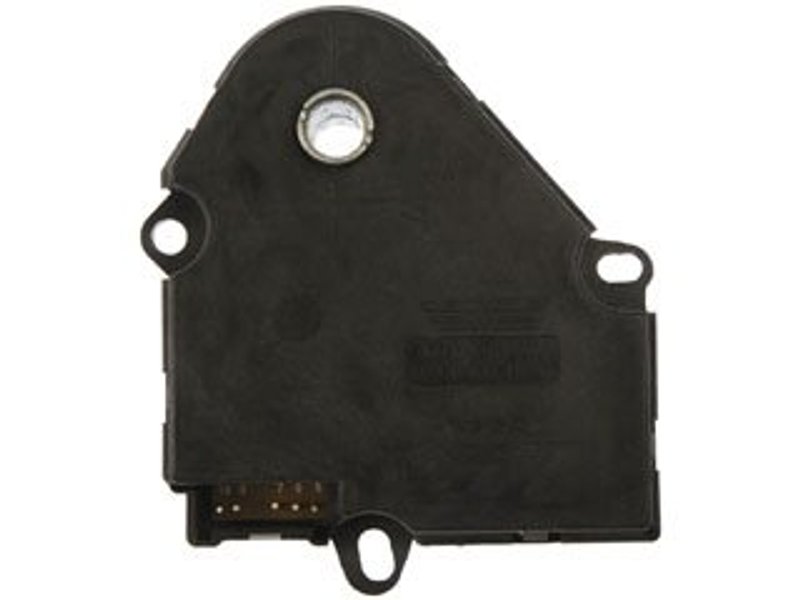

Dorman 604-121 HVAC Blend Door Actuator - Main

HVAC Blend Door Actuator for GM Trucks and SUVs

Dorman 604-121 is a rotary HVAC blend door actuator built to match the fit and function of the original unit on select Chevrolet, GMC, Cadillac, and Hummer applications. It is used for mode control in vehicles with manual front temperature controls and specific factory option codes, making it a direct replacement for common HVAC airflow issues.

Key Features

• Rotary switch activation type for HVAC mode control
• Plastic housing construction
• Direct replacement actuator for select GM HVAC systems
• Designed for specific vehicle years, makes, models, and factory configurations
• Package contents: actuator

Detailed Description

This Dorman HVAC blend door actuator, part number 604-121, is engineered to align with the original actuator used in select Chevrolet Silverado, GMC Sierra, Cadillac Escalade EXT, and Hummer H2 models. It is a fitment-based replacement for the HVAC mode door system, helping restore proper air distribution through the dash vents, floor outlets, or defrost settings. This part cross-references SKP SK604121 for the same application.

Compatible With 2003-2006 Chevrolet Silverado 1500, Main; 2003-2006 GMC Sierra 1500, Main; and 2003-2007 Hummer H2, Main, this actuator is also listed for multiple Silverado and Sierra HD and Classic variants with the correct factory equipment. The Dorman 604-121 is intended for vehicles with RPO Code CJ3 front manual temperature controls and RPO Code D07 front floor console configurations where noted.

What It Helps Solve

• Incorrect airflow direction from the HVAC system
• Loss of mode control between dash, floor, and defrost vents
• Clicking or binding from a worn blend door actuator
• HVAC response problems caused by a failed rotary actuator
• Restores proper operation on select Chevrolet Silverado and GMC Sierra models

Installation Notes and Tips

Verify the vehicle’s year, make, model, position, and factory option codes before ordering. This actuator is listed for the Main position and is application-specific, so matching the original part number and HVAC configuration is important for correct installation. Confirm the replacement location and compare the connector and mounting style to the original unit before service.

Quality Assurance

Dorman designs this HVAC heater blend door actuator as a precision-engineered replacement to match the quality and performance of the original part on the listed applications. Part number 604-121 is built for direct-fit service on the specified GM vehicles and HVAC configurations.
