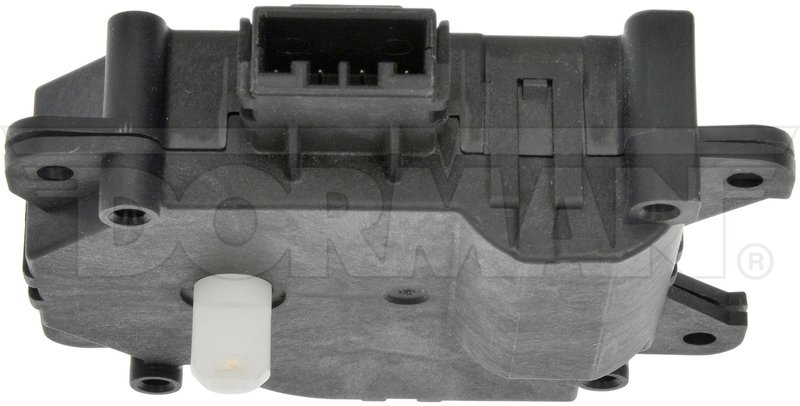

Dorman 604-181 HVAC Blend Door Actuator - Main

Overview of Dorman 604-181 HVAC Blend Door Actuator

The Dorman 604-181 HVAC Blend Door Actuator is designed specifically for Cadillac ATS and CTS models. This rotary switch actuator features a durable plastic construction and a reliable pin terminal connection, ensuring precise control of your vehicle's HVAC blend doors.

• Rotary switch activation type for smooth operation
• Four male pin terminals for secure electrical connection
• Durable plastic material for long-lasting performance
• Compatible with Cadillac ATS and CTS HVAC systems
• Includes one air door actuator per package

Detailed Product Description

This HVAC blend door actuator by Dorman, part number 604-181, is engineered to replace faulty or worn actuators in Cadillac ATS and CTS vehicles. The actuator uses a rotary switch activation type, which allows for precise modulation of the blend door position, controlling airflow and temperature inside the cabin. Equipped with four male pin terminals, it ensures a stable and secure electrical connection to the vehicle’s HVAC system. The actuator’s plastic housing is designed to withstand typical operating conditions without compromising performance.

Common Applications and Issues Resolved

• Eliminates inconsistent cabin temperature control
• Resolves HVAC blend door failure symptoms such as stuck or unresponsive doors
• Fixes issues with uneven airflow distribution inside the vehicle
• Addresses clicking or knocking noises from the HVAC system
• Restores proper function to the Cadillac ATS and CTS climate control system

Installation Notes and Tips

Installation of the Dorman 604-181 HVAC blend door actuator requires basic automotive HVAC knowledge. Ensure the vehicle’s battery is disconnected before beginning to avoid electrical shorts. Access the blend door actuator location behind the dashboard or glove box area, depending on the model year. Carefully disconnect the four-pin male terminal connector before removing the old actuator. Align the new actuator properly and secure it in place, then reconnect the electrical terminals. Test the HVAC system to confirm proper operation before reassembling panels.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 604-181 HVAC blend door actuator undergoes quality control testing to ensure reliable performance in Cadillac ATS and CTS vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the supplier for exact warranty terms.
