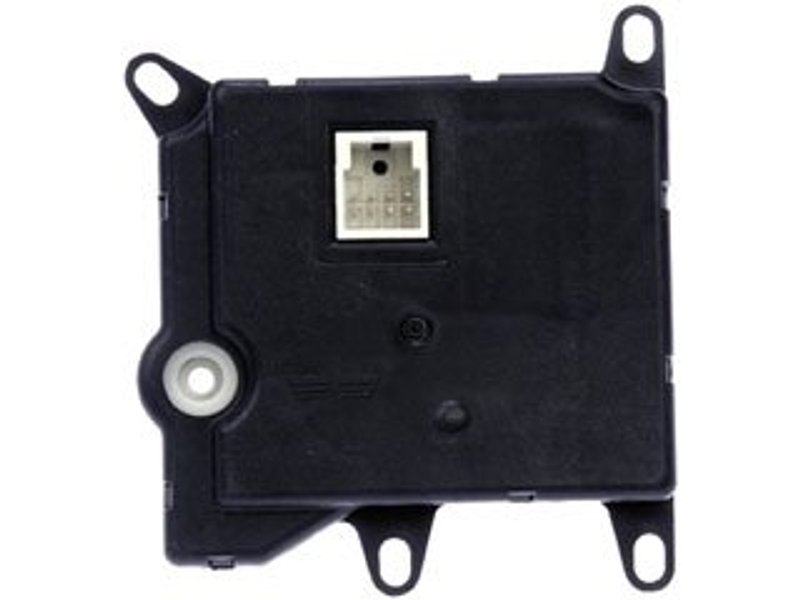

Dorman 604-200 HVAC Blend Door Actuator - Main

HVAC Blend Door Actuator for Ford Vans

Dorman 604-200 is a rotary HVAC blend door actuator built for temperature control in select Ford E-Series and Windstar applications. It matches the original actuator’s function and mounting style for vehicles that use a main-position blend door control.

• Rotary switch activation type for HVAC temperature blend control
• Plastic housing construction
• Packaged as an actuator only
• Direct replacement for select Ford E-150, E-250, E-350 Super Duty, Econoline, and Windstar models
• Cross-references Standard Ignition ADR208 and TechSmart J04004 for the same application

Application Details

This HVAC blend door actuator is used to control the blend door inside the heating and air conditioning system, helping regulate cabin temperature by directing airflow through the heater core and evaporator. Dorman 604-200 is engineered to match the quality and performance of the original actuator on specific Ford E-150, Ford E-250, Ford E-350 Super Duty, Ford Econoline Van, Ford Econoline Wagon, and Ford Windstar vehicles. It is a direct-fit replacement for main-position HVAC temperature control service on the listed applications.

Common Problems It Can Address

• Inconsistent cabin temperature on Ford E-Series and Windstar vehicles
• Air stuck on hot or cold due to blend door control failure
• Clicking, ticking, or repeated movement from the HVAC dash area
• Loss of temperature adjustment at the climate control panel
• Blend door response issues caused by worn internal actuator components

Installation Notes

Verify the vehicle year, model, and main-position HVAC actuator location before installation. Access is typically through the HVAC housing, so confirm the blend door linkage and connector match the original unit before final assembly. After installation, cycle the climate controls through full hot and full cold to confirm proper actuator movement and temperature response.

Quality Assurance

Dorman builds this actuator as an OE-style replacement for the original blend door actuator used in the listed Ford applications. The rotary activation design and plastic construction are selected to match the factory-style service part for temperature control repair.
