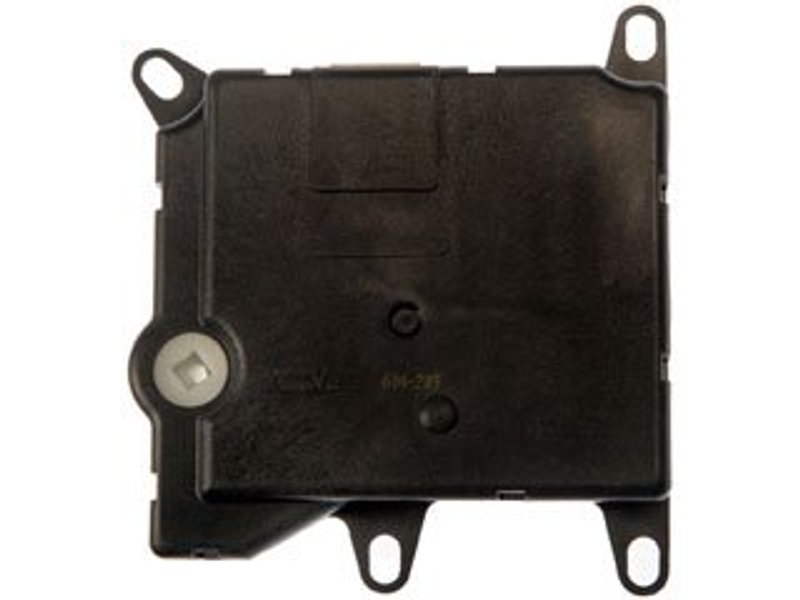

Dorman 604-209 HVAC Blend Door Actuator - Main

HVAC Blend Door Actuator for Manual Temperature Control

Dorman 604-209 is a heater blend door actuator engineered to match the fit and function of the original unit on select Ford, Mercury, and Lincoln applications. It uses a rotary switch activation design and a plastic housing to support temperature blend control in vehicles with manual temperature control.

Compatible With 2002-2010 Ford Explorer, Main; 2007-2010 Ford Explorer Sport Trac, Main; 2002-2010 Mercury Mountaineer, Main; and 2003-2006 Ford Expedition, Main. This Dorman 604-209 replacement is built for direct-fit service on the listed applications.

Key Features

• HVAC blend door actuator for temperature control operation
• Rotary switch activation type
• Plastic construction
• Direct replacement for specific Ford, Mercury, and Lincoln HVAC systems
• Fits Main position applications with manual temperature control

Detailed Description

This HVAC heater blend door actuator controls the movement of the blend door inside the heating and air conditioning system, helping regulate cabin temperature by directing airflow through the proper HVAC path. Dorman 604-209 is precision-engineered to match the quality and performance of the original actuator on the listed vehicle years, makes, and models. It is a practical replacement for Ford Explorer, Ford Explorer Sport Trac, Mercury Mountaineer, and Ford Expedition models equipped with manual temperature control.

This part cross-references Four Seasons 37533 for the same application.

Common Problems This Part May Solve

• Inconsistent cabin temperature from the vents
• Temperature stuck on hot or cold
• Blend door movement issues caused by actuator failure
• HVAC system not responding correctly to manual temperature adjustments
• Clicking or repeated movement from the dash HVAC area

Installation Notes and Tips

Verify the vehicle uses manual temperature control and the Main position application before ordering. Compare the original actuator’s connector style, mounting points, and operating function to confirm a proper match. After installation, cycle the HVAC controls to allow the system to relearn actuator position if required by the vehicle.

Quality Assurance

Dorman designs this replacement actuator to match original equipment fit and performance on the specified applications. The part number 604-209 is intended for direct replacement service on the listed vehicles.
