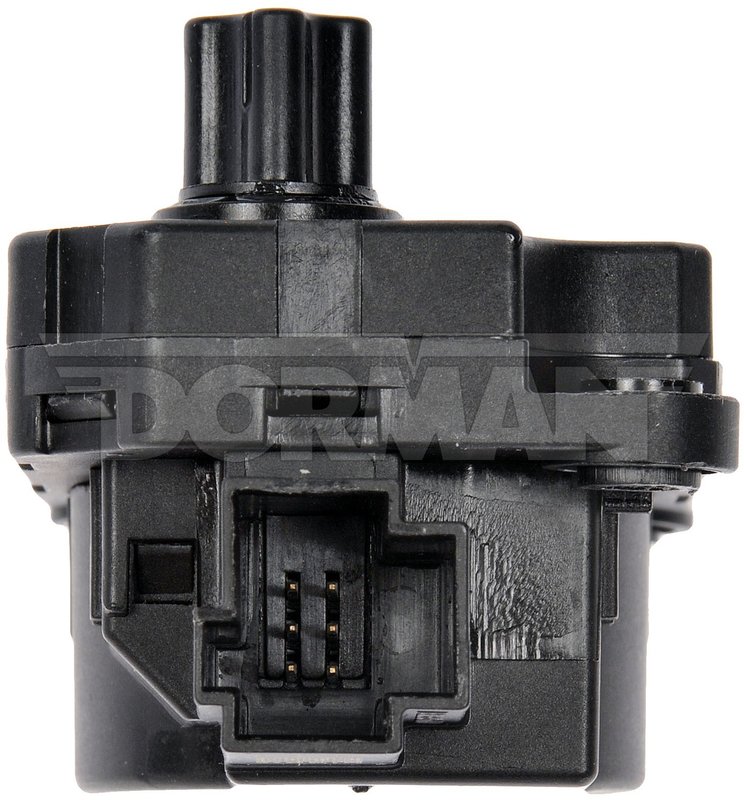

Dorman 604-315 HVAC Blend Door Actuator - Auxiliary or Main
OE Quality 60-Day Returns
Dorman

Dorman 604-315 HVAC Blend Door Actuator - Auxiliary or Main

Brand Dorman 604-315
Position Auxiliary
Material Plastic
Package Contents 1 Air Door Actuator
Switch Activation Type Rotary
Terminal Gender Male
Terminal Quantity 6
Terminal Type Pin
Fits Cadillac, Chevrolet, and Buick · 44 vehicles

OE direct replacement. Precision-engineered to match original quality and performance.

Rotary actuator design. Provides smooth, reliable control of HVAC blend doors.

Plastic housing. Lightweight construction with a 6-pin male terminal connection.

Cross-references 13316344 for the same application. See all 1.

$46.49Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $46.49
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all HVAC Blend Door Actuator options

HVAC Blend Door Actuator for OE-Style Climate Control

Dorman 604-315 is an HVAC heater blend door actuator built to match the fit and performance of the original actuator on specific vehicles. It uses a rotary switch activation type, a 6-pin male terminal layout, and a plastic housing for direct replacement service in the HVAC system.

Compatible With select Cadillac SRX, Chevrolet Camaro, Buick LaCrosse, Buick Regal, Buick Verano, and Buick Allure applications, this actuator is used in main and auxiliary HVAC positions depending on the vehicle configuration. This part cross-references 13316344 for the same application.

Key Features

  • OE-style HVAC blend door actuator for temperature and air distribution control
  • Rotary activation design for blend door, mode, and air inlet functions where specified
  • 6-pin male terminal connection for listed vehicle applications
  • Plastic housing built for HVAC system replacement use
  • Direct-fit replacement for select 2010-2016 Cadillac SRX and other GM applications
  • Dorman 604-315 replacement part number for catalog and service matching

Detailed Description

Dorman 604-315 is a heater blend door actuator engineered for specific GM HVAC systems that require precise door movement for temperature control, mode selection, or air inlet operation. Depending on the vehicle, it installs in either the main or auxiliary HVAC position and is listed for applications such as 2010-2016 Cadillac SRX, 2010-2015 Chevrolet Camaro, 2010-2013 Buick LaCrosse, 2011-2012 Buick Regal, 2012 Buick Verano, and 2010 Buick Allure. The Dorman 604-315 part number is commonly used when replacing a failed actuator that affects cabin airflow or temperature blending.

Common Problems This Part Can Address

  • Incorrect cabin temperature from a stuck blend door actuator
  • Airflow that stays on one vent setting instead of changing modes
  • Outside air or inside air door movement that no longer responds
  • Clicking, ticking, or repeated actuator movement behind the dash
  • HVAC control issues tied to the blend door or air inlet door

Installation Notes and Tips

Verify the vehicle’s HVAC position, connector style, and RPO code requirements before installation. This actuator is listed with a rotary switch activation type, pin terminals, and a 6-pin male connector layout, so matching the original electrical connection is important. Confirm the application by year, make, model, and HVAC position before replacing the original unit.

Quality Assurance

Dorman states that this HVAC heater blend door actuator is precision-engineered to match the quality and performance of the original part on the listed vehicles. Use the vehicle fitment details and connector specifications to confirm the correct replacement before service.

Related reading

This part fits 44 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2016CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2016CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2016CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2016CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2015CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2015CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2015CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2015CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2015ChevroletCamaroMainFits vehicles requiring outside air, comes in a box.
2014CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2014CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2014CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2014CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2014ChevroletCamaroMainFits vehicles requiring outside air, comes in a box.
2013BuickLaCrosseMainAir Inlet; w/RPO Code CJ2 (Front Automatic Temperature Controls); w/4 Pin Connector; Packaging Type: Box
2013CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2013CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2013CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2013CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2013ChevroletCamaroMainFits vehicles requiring outside air, comes in a box.
2012BuickLaCrosseMainFront Automatic Temperature Controls CJ2 (RPO Code) - Box Packaging - Air Inlet.
2012BuickRegalMainAir Inlet; Inside Air Door; Packaging Type: Box
2012BuickRegalMainAir Inlet; Outside Air Door; Packaging Type: Box
2012BuickVeranoMainMode; with RPO Code CJ2 (Front Automatic Temperature Controls); Packaged in a Box
2012CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2012CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2012CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2012CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2012ChevroletCamaroMainFits vehicles requiring outside air, comes in a box.
2011BuickLaCrosseMainFront Automatic Temperature Controls CJ2 (RPO Code) - Box Packaging - Air Inlet.
2011BuickRegalMainAir Inlet; Inside Air Door; Packaging Type: Box
2011BuickRegalMainAir Inlet; Outside Air Door; Packaging Type: Box
2011CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2011CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2011CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2011CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2011ChevroletCamaroMainFits vehicles requiring outside air, comes in a box.
2010BuickAllureMainFront Automatic Temperature Controls CJ2 (RPO Code) - Box Packaging - Air Inlet.
2010BuickLaCrosseMainFront Automatic Temperature Controls CJ2 (RPO Code) - Box Packaging - Air Inlet.
2010CadillacSRXAuxiliaryHVAC Blend Door Actuator for mode selection in box packaging.
2010CadillacSRXAuxiliaryTemperature control HVAC blend door actuator for box packaging.
2010CadillacSRXMainAir Inlet; Inside Air Door; Packaging Type: Box
2010CadillacSRXMainAir Inlet; Outside Air Door; Packaging Type: Box
2010ChevroletCamaroMainFits vehicles requiring outside air, comes in a box.
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
13316344
