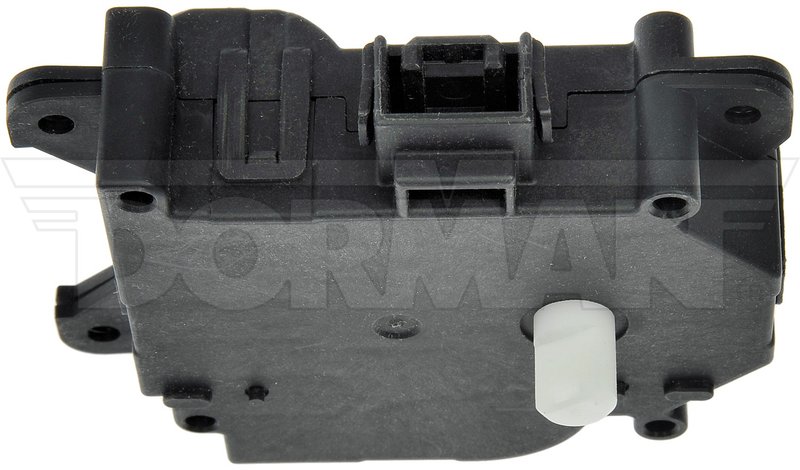

Dorman 604-318 HVAC Blend Door Actuator - Main

Overview of Dorman 604-318 HVAC Blend Door Actuator

The Dorman 604-318 HVAC Blend Door Actuator is designed specifically for Cadillac ATS and CTS models. This rotary switch actuator features a durable plastic construction and a 5-pin male terminal connection, ensuring reliable operation within your vehicle's HVAC system.

• Rotary switch activation type for precise blend door control
• 5-pin male terminal configuration for secure electrical connection
• Durable plastic material designed for long-lasting performance
• Compatible with Cadillac ATS and CTS HVAC systems
• Includes one air door actuator per package

Detailed Product Description

The Dorman 604-318 HVAC Blend Door Actuator is engineered to regulate airflow and temperature inside the cabin by controlling the blend door position. Its rotary switch activation type allows for smooth and accurate adjustments, while the 5-pin male terminal ensures a stable electrical interface with the vehicle’s HVAC control module. Constructed from high-quality plastic, this actuator is built to withstand the thermal and mechanical stresses typical in automotive HVAC environments. This part is a direct replacement designed to meet the specifications of Cadillac ATS and CTS models, providing consistent performance and compatibility.

Common Applications and Problem Resolution

• Resolves inconsistent cabin temperature due to faulty blend door movement
• Fixes HVAC system issues such as no airflow or stuck blend doors
• Eliminates clicking or grinding noises from the HVAC blend door area
• Restores proper air distribution between heat and air conditioning modes
• Addresses electrical connection problems related to terminal corrosion or damage

Installation Notes and Tips

Installation of the Dorman 604-318 actuator requires access to the HVAC housing behind the dashboard. It is recommended to disconnect the vehicle battery before beginning to avoid electrical shorts. Carefully remove the old actuator by disconnecting the 5-pin male terminal and unfastening mounting screws. Align the new actuator’s rotary switch correctly with the blend door shaft to ensure proper operation. After installation, test the HVAC system to confirm smooth blend door movement and correct temperature control.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 604-318 HVAC Blend Door Actuator undergoes rigorous quality control to ensure durability and reliable performance in Cadillac ATS and CTS vehicles. This product is backed by Dorman’s limited warranty, providing coverage against defects in material and workmanship under normal use.
