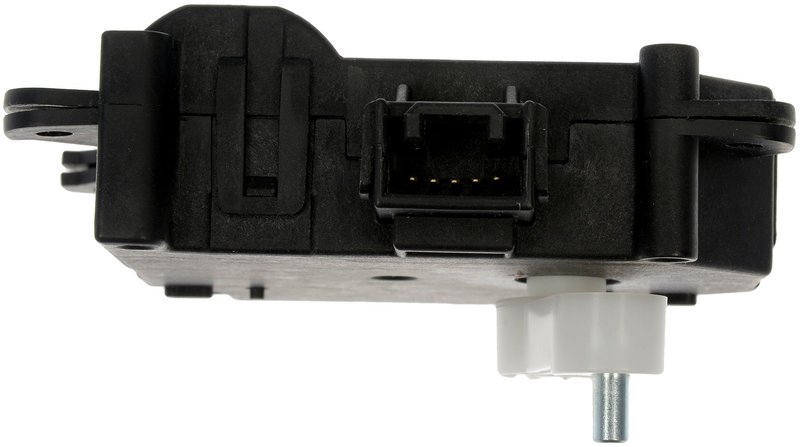

Dorman 604-348 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-348

The Dorman HVAC Blend Door Actuator 604-348 is designed to restore proper airflow control in your Toyota Sienna's heating and cooling system. This black plastic actuator features a rotary switch activation type and is engineered for reliable performance in climate control applications.

• Compatible with Toyota Sienna models
• Body color: Black plastic housing
• Rotary switch activation for precise blend door movement
• Connector color: Black female connector
• Dimensions: 3.68 inches length, 3.113 inches width, 1.405 inches height
• Includes actuator arm with 1.36 inches length
• Terminal type: Blade terminals, 5 terminals total
• Mounting hole quantity: 4 for secure installation

Detailed Product Description

The Dorman 604-348 HVAC Blend Door Actuator is a critical component for controlling the blend door in the HVAC system of Toyota Sienna vehicles. Constructed with durable black plastic, this actuator uses a rotary switch activation type to adjust the position of the blend door, regulating the mix of hot and cold air inside the cabin. The actuator features a female black connector and five blade terminals with male terminal gender, ensuring compatibility with the vehicle's wiring harness. Its compact dimensions and four mounting holes allow for straightforward replacement without modification. The included actuator arm, measuring 1.36 inches, facilitates precise door movement for optimal climate control.

Common HVAC Issues Resolved by This Actuator

• Inconsistent cabin temperature due to blend door malfunction
• Failure of HVAC system to switch between heating and cooling modes
• Unusual noises from the HVAC system indicating actuator wear
• Inability to control airflow direction properly
• Intermittent or no response from climate control settings

Installation Notes and Tips

When installing the Dorman 604-348 blend door actuator on a Toyota Sienna, ensure the vehicle's battery is disconnected to prevent electrical shorts. Carefully remove the old actuator by disconnecting the black female connector and unfastening the four mounting screws. Align the new actuator's mounting holes and actuator arm correctly to the blend door mechanism before securing it in place. Verify the actuator's operation by cycling the HVAC controls to confirm smooth and accurate door movement.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance for Toyota Sienna HVAC systems. While specific warranty details for part number 604-348 are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship. Refer to Dorman's official documentation for complete warranty information.
