Home› HVAC > Temperature Controls and Related Components› Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right Main
Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right MainOE Quality 60-Day Returns

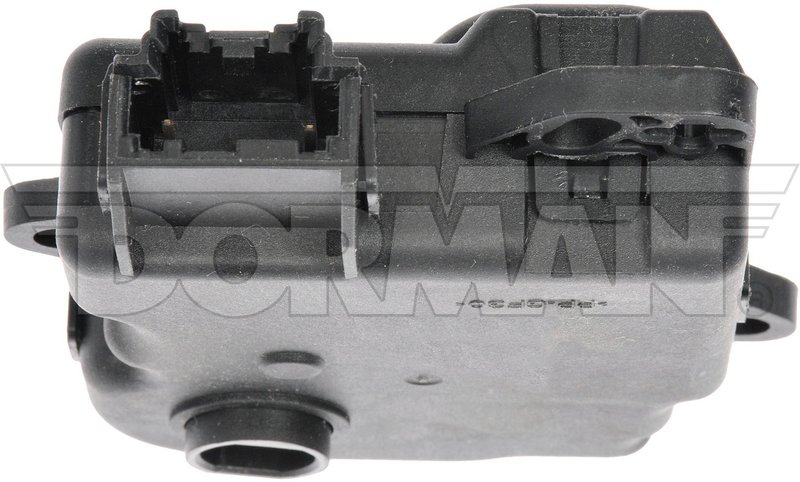

Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right Main - view 1
Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right Main - view 2
Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right Main - view 3
Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right Main - view 4
Part #: 604-624

Dorman 604-624 HVAC Blend Door Actuator - Left Main, Main or Right Main

Main
⚙️ 36 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$48.24Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Nissan and INFINITI, Armada, Titan, and QX56
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all HVAC Blend Door Actuator options

Overview of Dorman HVAC Blend Door Actuator 604-624

The Dorman HVAC Blend Door Actuator 604-624 is designed for precise control of airflow temperature in select Nissan and INFINITI vehicles. This rotary switch actuator ensures reliable operation within the HVAC system of the Nissan Armada, QX56, and TITAN models.

  • Rotary switch activation type for accurate blend door positioning
  • Durable plastic construction for long-lasting performance
  • Two male blade terminals for secure electrical connection
  • Compatible with Nissan Armada, QX56, and TITAN HVAC systems
  • Includes one air door actuator per package

Technical Details and Features

The Dorman 604-624 HVAC Blend Door Actuator features a rotary switch activation type, which allows for smooth and precise adjustment of the blend door within the vehicle’s heating and cooling system. It is equipped with two male blade terminals, providing a reliable electrical connection that supports consistent actuator function. Constructed from durable plastic, this actuator is engineered to withstand the thermal and mechanical stresses typical in automotive HVAC environments. This part is specifically designed to fit Nissan Armada, QX56, and TITAN models, ensuring compatibility and proper integration with the factory HVAC system.

Common Applications and Problem Resolution

This HVAC blend door actuator is used to control the mix of hot and cold air inside the vehicle cabin by adjusting the position of the blend door. It addresses several HVAC system issues, including:

  • Inconsistent cabin temperature due to blend door malfunction
  • Unresponsive or stuck HVAC temperature controls
  • Unusual noises from the HVAC system when adjusting temperature
  • Failure of the blend door to move, causing poor airflow distribution

Installation Notes and Tips

When installing the Dorman 604-624 blend door actuator, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Access to the HVAC housing may require removal of dashboard panels depending on the model. Verify the actuator’s rotary switch aligns correctly with the blend door mechanism before securing. Confirm the two male blade terminals are properly connected to the vehicle’s wiring harness for optimal electrical contact. Testing the actuator operation before reassembling the dashboard is recommended to ensure proper function.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 604-624 HVAC Blend Door Actuator undergoes quality control testing to ensure durability and reliable performance in Nissan Armada, QX56, and TITAN vehicles. This part is backed by Dorman’s limited warranty, providing coverage against defects in material and workmanship under normal use conditions.

BrandDorman
Part Number604-624
MaterialPlastic
Package Contents1 Air Door Actuator
Switch Activation TypeRotary
Terminal GenderMale
Terminal Quantity2
Terminal TypeBlade

This part fits 36 vehicles. Search below:

YearMakeModelPositionNotes
2015NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2015NissanTITANMainFits vehicles requiring outside air, comes in a box.
2014NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2014NissanTITANMainFits vehicles requiring outside air, comes in a box.
2013NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2013NissanTITANMainFits vehicles requiring outside air, comes in a box.
2012NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2012NissanTITANMainFits vehicles requiring outside air, comes in a box.
2011NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2011NissanTITANMainFits vehicles requiring outside air, comes in a box.
2010INFINITIQX56Left MainTemperature; To 4/10; Packaging Type: Box
2010INFINITIQX56MainMode; To 4/10; Packaging Type: Box
2010INFINITIQX56Right MainTemperature; To 4/10; Packaging Type: Box
2010NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2010NissanTITANMainFits vehicles requiring outside air, comes in a box.
2009INFINITIQX56Left MainTemperature control HVAC blend door actuator for box packaging.
2009INFINITIQX56MainTemperature control HVAC blend door actuator for box packaging.
2009INFINITIQX56Right MainTemperature control HVAC blend door actuator for box packaging.
2009NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2009NissanTITANMainFits vehicles requiring outside air, comes in a box.
2008INFINITIQX56Left MainTemperature control HVAC blend door actuator for box packaging.
2008INFINITIQX56MainTemperature control HVAC blend door actuator for box packaging.
2008INFINITIQX56Right MainTemperature control HVAC blend door actuator for box packaging.
2008NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2008NissanTITANMainFits vehicles requiring outside air, comes in a box.
2007INFINITIQX56Left MainTemperature control HVAC blend door actuator for box packaging.
2007INFINITIQX56MainTemperature control HVAC blend door actuator for box packaging.
2007INFINITIQX56Right MainTemperature control HVAC blend door actuator for box packaging.
2007NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2007NissanTITANMainFits vehicles requiring outside air, comes in a box.
2006NissanArmadaMainHVAC Blend Door Actuator for mode selection in box packaging.
2006NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2006NissanTITANMainFits vehicles requiring outside air, comes in a box.
2005NissanArmadaMainHVAC Blend Door Actuator for mode selection in box packaging.
2005NissanArmadaMainFits vehicles requiring outside air, comes in a box.
2005NissanTITANMainFits vehicles requiring outside air, comes in a box.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

27443ZH00AAPBDA0239

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
