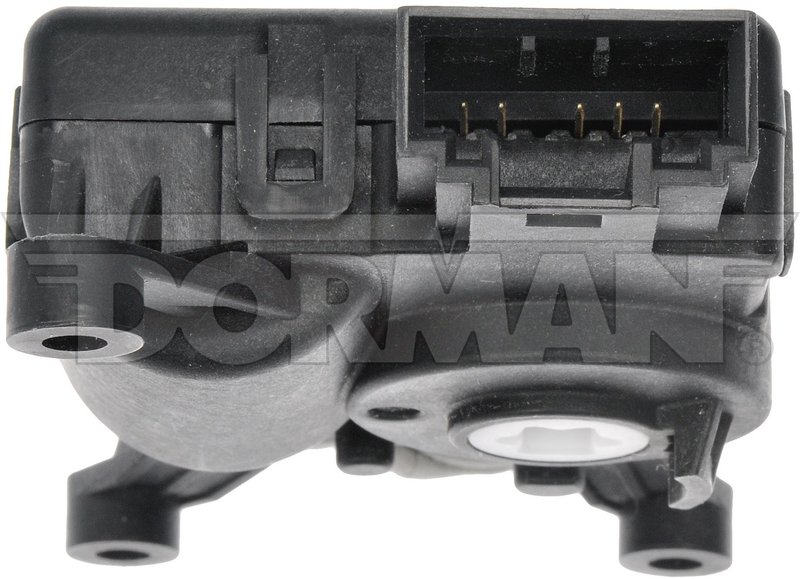

Dorman 604-815 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-815

The Dorman HVAC Blend Door Actuator 604-815 is designed specifically for Volkswagen Passat models, providing reliable control of your vehicle's climate system. This actuator features a rotary switch activation type and a durable plastic construction to ensure consistent performance.

• Rotary switch activation type for precise airflow control
• Five-pin male terminal configuration for secure electrical connection
• Durable plastic material for long-lasting use
• Compatible with Volkswagen Passat HVAC systems
• Includes one air door actuator per package

Detailed Product Description

The Dorman 604-815 HVAC Blend Door Actuator is engineered to regulate the blend door within the heating, ventilation, and air conditioning system of Volkswagen Passat vehicles. Its rotary switch activation type allows for smooth and accurate adjustment of airflow temperature by controlling the position of the blend door. The actuator connects via five male pin terminals, ensuring a stable and reliable electrical interface. Constructed from high-quality plastic, this actuator balances durability with lightweight design, making it an effective replacement part for maintaining optimal HVAC function.

Common Applications and Problem Resolution

This HVAC blend door actuator is used to address issues related to climate control malfunctions in Volkswagen Passat models. It helps resolve problems such as:

• Inconsistent cabin temperature regulation
• Unresponsive or stuck blend door movement
• Unusual noises coming from the HVAC system
• Failure to switch between heating and cooling modes
• Electrical connection issues due to faulty actuator terminals

Installation Notes and Tips

When installing the Dorman 604-815 blend door actuator, ensure the vehicle is powered off and the HVAC system is disengaged. Carefully disconnect the existing actuator by releasing the five-pin male terminal connector. Align the new actuator properly with the blend door mechanism and secure it in place. Verify the rotary switch activation operates smoothly before reassembling the dashboard components. Refer to the Volkswagen Passat service manual for detailed instructions and torque specifications.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing dependable performance for Volkswagen Passat HVAC systems. The 604-815 blend door actuator undergoes rigorous quality control to ensure durability and functionality. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the supplier for exact warranty terms.
