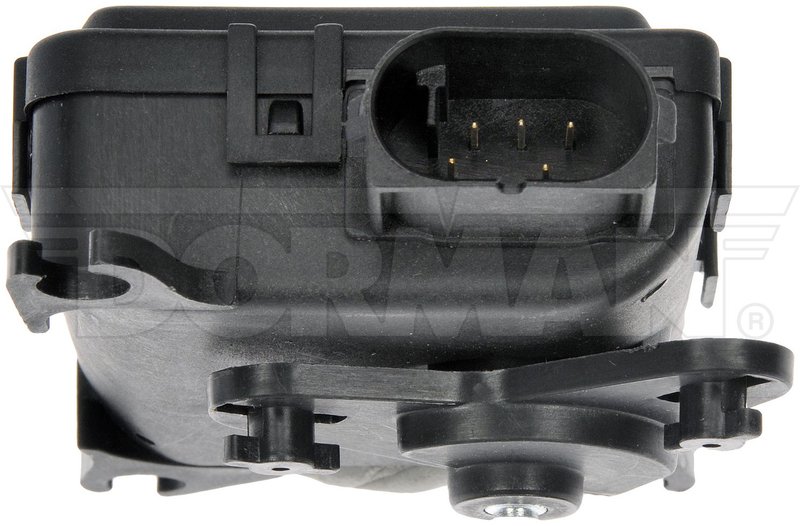

Dorman 604-829 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-829

The Dorman HVAC Blend Door Actuator 604-829 is designed for precise control of airflow temperature in select Audi and Volkswagen vehicles. This rotary switch actuator ensures reliable operation of the HVAC system in models such as the Audi A4, A4 Quattro, RS4, S3, S4, and Volkswagen Passat.

• Rotary switch activation type for smooth and accurate blend door movement
• Five-pin male terminal configuration for secure electrical connection
• Durable plastic construction optimized for HVAC system environments
• Includes one air door actuator per package

Technical Details and Attributes

The Dorman 604-829 blend door actuator features a rotary switch activation type, which allows for precise modulation of the HVAC blend door position. It connects via five male pin terminals, ensuring compatibility with the vehicle’s existing wiring harness. Constructed from durable plastic materials, this actuator is engineered to withstand the temperature fluctuations and mechanical demands within the HVAC system. The part is specifically designed to replace faulty or worn actuators in Audi A4, A4 Quattro, RS4, S3, S4, and Volkswagen Passat models, maintaining proper climate control functionality.

Compatible Vehicles and Applications

This HVAC blend door actuator is compatible with the following vehicles:

• Audi A4 and A4 Quattro
• Audi RS4
• Audi S3 and S4
• Volkswagen Passat

Use the Dorman 604-829 actuator to restore proper airflow temperature control and eliminate HVAC system issues related to blend door operation in these models.

Common HVAC Issues Addressed

• Inconsistent cabin temperature due to blend door malfunction
• Unresponsive or stuck HVAC blend door movement
• Unusual noises from the HVAC system during temperature adjustment
• Failure of the rotary switch to properly modulate airflow temperature
• Electrical connection problems caused by damaged terminals

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Disconnect the battery to prevent electrical shorts during replacement
• Locate the blend door actuator behind the dashboard on the HVAC housing
• Carefully disconnect the five-pin male terminal connector before removing the old actuator
• Install the Dorman 604-829 actuator by aligning the rotary switch and securing it in place
• Reconnect the electrical connector and test HVAC system operation before reassembling dashboard components

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 604-829 HVAC blend door actuator undergoes rigorous quality control to ensure reliable performance in Audi and Volkswagen vehicles. This part is backed by Dorman’s limited warranty, providing coverage against defects in material and workmanship under normal use.
