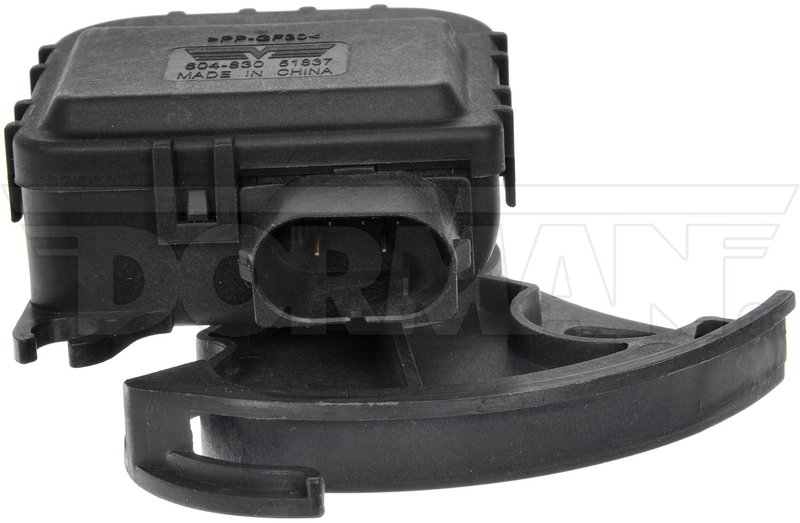

Dorman 604-830 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-830

The Dorman HVAC Blend Door Actuator 604-830 is designed for precise control of airflow temperature in select Audi and Volkswagen vehicles. This rotary switch actuator ensures reliable operation of the HVAC system in models such as the Audi A4, A4 Quattro, RS4, S3, S4, and Volkswagen Passat.

• Rotary switch activation type for smooth and accurate blend door movement
• Five-pin male terminal configuration for secure electrical connection
• Durable plastic construction for long-lasting performance
• Compatible with multiple Audi and Volkswagen models including A4, RS4, and Passat
• Includes one air door actuator per package

Technical Details and Features

The Dorman 604-830 HVAC blend door actuator features a rotary switch activation type, which allows for precise modulation of the blend door position within the HVAC system. It utilizes a five-pin male terminal setup, ensuring a stable and reliable electrical connection to the vehicle’s wiring harness. Constructed from durable plastic materials, this actuator is engineered to withstand the thermal and mechanical stresses typical in automotive HVAC environments. The part is specifically designed to fit Audi models such as the A4, A4 Quattro, RS4, S3, and S4, as well as the Volkswagen Passat, providing a direct replacement for factory components.

Common Applications and Problem Resolution

This HVAC blend door actuator is used to control the mix of hot and cold air inside the vehicle cabin by adjusting the position of the blend door. It addresses several HVAC system issues, including:

• Inconsistent cabin temperature due to blend door malfunction
• Unresponsive or stuck HVAC temperature controls
• Unusual noises from the HVAC system indicating actuator failure
• Failure to switch between heating and cooling modes properly
• Intermittent airflow temperature changes

Installation Notes and Tips

When installing the Dorman 604-830 blend door actuator, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Access to the actuator typically requires removal of dashboard panels or glove box components depending on the vehicle model. Verify the orientation of the actuator and the alignment of the five-pin male terminals before securing the unit. After installation, test the HVAC system to confirm proper blend door movement and temperature control functionality.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance for HVAC system repairs. The 604-830 blend door actuator undergoes quality control testing to ensure durability and fitment accuracy. This part is backed by Dorman’s limited warranty, which covers defects in material and workmanship under normal use conditions.
