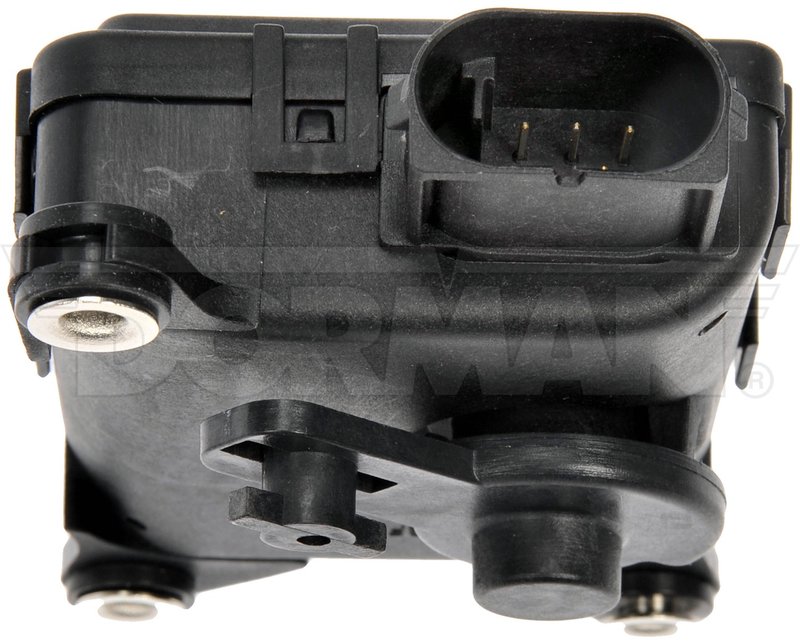

Dorman 604-833 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-833

The Dorman HVAC Blend Door Actuator 604-833 is designed for precise control of airflow temperature in select Audi and Volkswagen models. This rotary switch actuator ensures reliable operation of the HVAC blend door system, maintaining optimal cabin comfort.

• Rotary switch activation type for smooth and accurate control
• Five male pin terminals for secure electrical connections
• Durable plastic construction for long-lasting performance
• Compatible with Audi A3, A3 Quattro, Volkswagen Beetle, Golf, Jetta, TT, and TT Quattro
• Includes one air door actuator per package

Technical Details and Compatibility

The Dorman 604-833 HVAC Blend Door Actuator features a rotary switch activation type, which allows for precise modulation of the blend door position. It is equipped with five male pin terminals, ensuring a stable and reliable electrical connection within the HVAC system. Constructed from durable plastic, this actuator is engineered to withstand the temperature variations and mechanical stresses typical in automotive HVAC environments. This part is specifically compatible with various Audi and Volkswagen models, including the Audi A3 and A3 Quattro, as well as Volkswagen Beetle, Golf, Jetta, TT, and TT Quattro vehicles.

Common HVAC Issues Addressed by This Actuator

• Inconsistent cabin temperature due to blend door malfunction
• Failure of HVAC system to switch between hot and cold air
• Unusual noises from the HVAC system indicating actuator wear
• Inability to maintain desired airflow direction or temperature
• Intermittent or complete loss of HVAC blend door control

Installation Notes and Tips

When installing the Dorman 604-833 blend door actuator, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Carefully remove the old actuator and verify the orientation and terminal connections before installing the new unit. The five-pin male terminals should be securely connected to the vehicle’s wiring harness. Calibration or reset of the HVAC system may be required after installation to ensure proper operation. Refer to the vehicle’s service manual for specific procedures related to Audi A3, A3 Quattro, Volkswagen Beetle, Golf, Jetta, TT, and TT Quattro models.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance and fitment. The 604-833 HVAC Blend Door Actuator undergoes rigorous quality control testing to ensure durability and functionality. This part is backed by Dorman’s limited warranty, covering defects in material and workmanship under normal use conditions. For detailed warranty terms, consult the product documentation or Dorman’s official resources.
