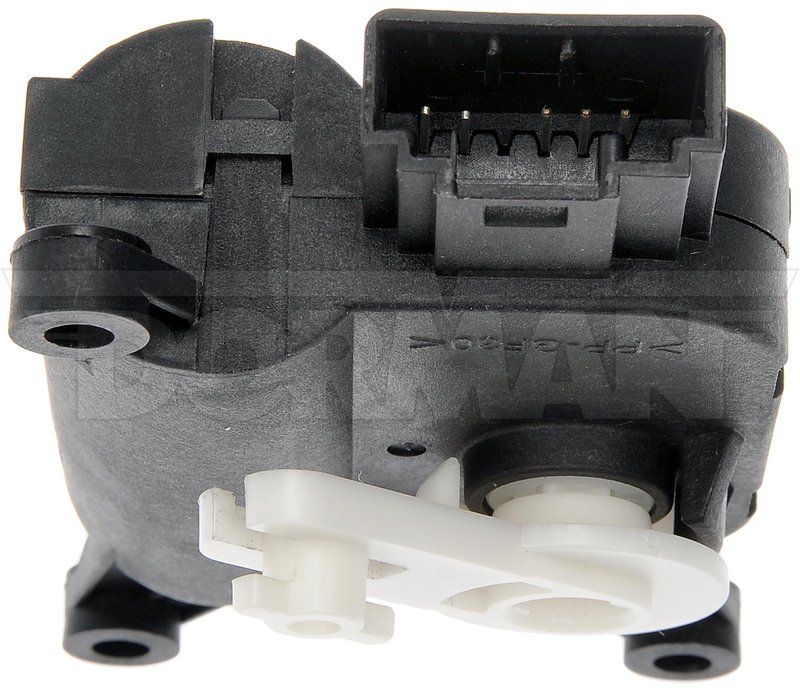

Dorman 604-834 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-834

The Dorman HVAC Blend Door Actuator 604-834 is designed for precise control of airflow temperature in select Audi and Volkswagen models. This rotary switch actuator ensures reliable operation of the HVAC system, maintaining comfort inside your vehicle.

• Rotary switch activation type for smooth and accurate control
• Five-pin male terminal configuration for secure electrical connection
• Durable plastic construction for long-lasting performance
• Compatible with Audi A3, A3 Quattro, and Clasico models
• Also fits Volkswagen Golf, Jetta, TT, and TT Quattro vehicles

Detailed Product Description

The Dorman 604-834 HVAC Blend Door Actuator features a rotary switch activation type, which allows for precise modulation of the blend door position within the HVAC system. Equipped with five male pin terminals, this actuator provides a stable and reliable electrical interface, minimizing the risk of connection issues. Constructed from durable plastic materials, it is engineered to withstand the temperature fluctuations and mechanical stresses typical in automotive HVAC environments. This part is specifically designed to replace faulty or worn actuators in Audi A3, A3 Quattro, and Clasico models, as well as Volkswagen Golf, Jetta, TT, and TT Quattro vehicles, ensuring proper climate control functionality.

Common Applications and Issues Resolved

• Restores proper temperature control by regulating blend door movement
• Eliminates inconsistent airflow or temperature fluctuations inside the cabin
• Resolves HVAC system noises caused by malfunctioning actuators
• Fixes failure of the blend door to respond to temperature adjustments
• Prevents HVAC system error codes related to actuator faults

Installation Notes and Tips

When installing the Dorman 604-834 blend door actuator, ensure the vehicle’s battery is disconnected to avoid electrical shorts. Carefully remove the old actuator and verify the orientation and terminal connections before installing the new unit. The five-pin male terminals should align precisely with the vehicle’s wiring harness. After installation, test the HVAC system to confirm the blend door moves smoothly and responds correctly to temperature controls. Refer to the vehicle’s service manual for specific removal and installation procedures for Audi and Volkswagen models.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The 604-834 HVAC Blend Door Actuator undergoes rigorous quality control testing to ensure proper function and fitment. This part is backed by Dorman’s limited warranty, covering defects in material and workmanship under normal use conditions. For detailed warranty terms, consult the product documentation or Dorman’s official resources.
