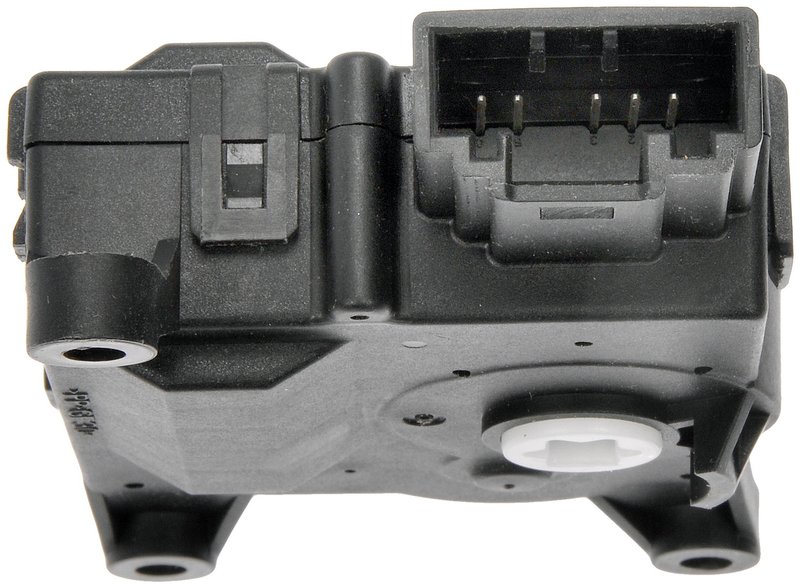

Dorman 604-854 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-854

The Dorman HVAC Blend Door Actuator 604-854 is designed to restore proper airflow control in Volkswagen vehicles. This rotary switch actuator is engineered for precise operation in Volkswagen CC, Passat, and Passat CC models, ensuring reliable climate control performance.

• Rotary switch activation type for smooth blend door movement
• Five male blade terminals for secure electrical connections
• Durable plastic construction for long-lasting use
• Includes one air door actuator per package

Detailed Product Description

This HVAC blend door actuator from Dorman features a rotary switch activation type, which allows for accurate adjustment of the blend door position within the heating and air conditioning system. The actuator is equipped with five male blade terminals, providing a stable and reliable electrical interface. Constructed from durable plastic materials, this part is designed to withstand the operational demands of Volkswagen vehicles such as the CC, Passat, and Passat CC. The part number 604-854 ensures compatibility and easy identification for replacement needs.

Compatible Vehicles and Applications

This Dorman HVAC blend door actuator 604-854 is compatible with the following Volkswagen models:

• Volkswagen CC
• Volkswagen Passat
• Volkswagen Passat CC

It is specifically designed to replace faulty or worn blend door actuators in these vehicles, restoring proper HVAC system function.

Common Issues Addressed by This Actuator

• Inconsistent or incorrect cabin temperature regulation
• Unresponsive or stuck blend door movement
• Unusual noises coming from the HVAC system
• Failure of the HVAC system to switch between heating and cooling modes
• Electrical connection problems due to worn terminals

Installation Notes and Tips

• Ensure the vehicle is powered off before beginning installation
• Disconnect the battery to prevent electrical shorts
• Carefully remove the old blend door actuator to avoid damaging the HVAC housing
• Verify the five male blade terminals align correctly with the vehicle wiring harness
• Test actuator operation before reassembling the dashboard components

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications. The HVAC blend door actuator 604-854 undergoes rigorous quality control to ensure reliable performance in Volkswagen CC, Passat, and Passat CC models. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation for exact warranty terms.
