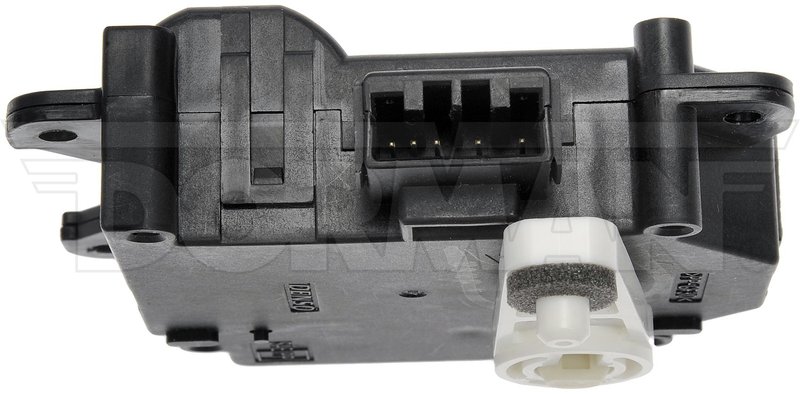

Dorman 604-884 HVAC Blend Door Actuator - Main

Overview of Dorman HVAC Blend Door Actuator 604-884

The Dorman HVAC Blend Door Actuator 604-884 is designed for precise control of airflow temperature in select Honda vehicles. This rotary switch actuator ensures reliable operation for Honda CR-Z, Fit, and Insight models, maintaining optimal climate control performance.

• Rotary switch activation type for smooth and accurate movement
• Five-pin male terminal configuration for secure electrical connection
• Durable plastic construction for long-lasting use
• Includes one air door actuator per package

Technical Details and Features

This HVAC blend door actuator features a rotary switch activation type, which allows for precise modulation of the blend door position within the HVAC system. The actuator connects via five male pin terminals, ensuring compatibility with the vehicle’s wiring harness. Constructed from durable plastic materials, this part is engineered to withstand the temperature variations and mechanical stresses typical in automotive HVAC systems. The Dorman 604-884 actuator is specifically designed to fit Honda CR-Z, Fit, and Insight models, providing a direct replacement for the original equipment part.

Compatible Vehicles and Applications

This Dorman HVAC blend door actuator 604-884 is compatible with the following Honda models:

• Honda CR-Z
• Honda Fit
• Honda Insight

It is intended to replace faulty or worn blend door actuators that cause issues with temperature control inside the vehicle cabin.

Common Issues Addressed by This Actuator

• Inconsistent or incorrect cabin temperature regulation
• Unresponsive or stuck blend door movement
• HVAC system making unusual noises during operation
• Failure of the blend door to switch between heat and air conditioning modes
• Electrical connection problems due to damaged terminals

Installation Notes and Tips

Installation of the Dorman 604-884 HVAC blend door actuator requires basic automotive repair knowledge. It is recommended to disconnect the vehicle battery before beginning to avoid electrical shorts. Access to the HVAC housing is necessary, which may involve removing dashboard panels. Ensure the five-pin male terminals are properly aligned and securely connected to the vehicle wiring harness. Calibration of the blend door actuator may be required after installation to ensure correct operation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications. The 604-884 blend door actuator undergoes quality control testing to ensure reliable performance and durability. This product typically includes a limited warranty covering defects in material and workmanship. Refer to Dorman’s warranty policy for specific terms and conditions.
