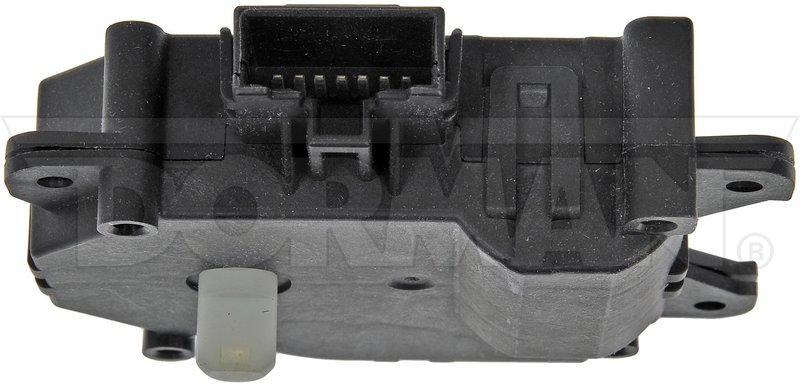

Dorman 604-947 HVAC Blend Door Actuator - Main

Dorman 604-947 HVAC Blend Door Actuator

Dorman 604-947 is a precision-engineered HVAC blend door actuator built to match the function and performance of the original unit on select Toyota vehicles. It uses a rotary switch activation design with a 7-pin male terminal layout for direct replacement in the HVAC control system.

Compatible with 1997-2001 Toyota Camry and 1999-2003 Toyota Solara, this HVAC blend door actuator supports mode selection inside the HVAC box. If your Toyota Camry or Toyota Solara has inconsistent air distribution or a failed actuator, Dorman 604-947 is a direct-fit replacement option for the original part.

Key Features

• OE-style HVAC blend door actuator for select Toyota applications
• Rotary switch activation type
• 7-pin male terminal configuration
• Plastic housing for HVAC system use
• Direct replacement for mode selection in the HVAC box
• Cross-references Autotecnica TY0616648 and 8710606060 for the same application

Detailed Product Overview

This HVAC heater blend door actuator is engineered to match the quality and performance of the original actuator used in specific Toyota Camry and Toyota Solara models. The part number 604-947 is designed around the factory-style electrical and mechanical interface, including a rotary activation design and pin-style terminals, to restore proper HVAC door movement within the system.

For drivers searching for a Toyota Camry HVAC blend door actuator or a Toyota Solara HVAC blend door actuator, Dorman 604-947 provides a vehicle-specific replacement for the blend door function that controls air routing inside the HVAC housing.

Common Problems This Part Can Address

• Incorrect air direction from the dash vents, floor vents, or defrost outlets
• HVAC mode changes that do not respond properly
• Blend door actuator noise from a worn internal motor or gear set
• Loss of consistent airflow routing in the cabin
• Failure of the original actuator to move the HVAC door as commanded

Installation Notes and Tips

Verify the connector style, terminal count, and vehicle application before installation. This part is listed for the main HVAC blend door actuator position on 1997-2001 Toyota Camry and 1999-2003 Toyota Solara. Confirm the original actuator matches the rotary, 7-pin male terminal configuration before replacement.

After installation, cycle the HVAC controls through the available modes to confirm proper door movement and air distribution. For best results, inspect the surrounding HVAC components for binding or damage that may have contributed to the original failure.

Quality Assurance

Dorman manufactures this actuator as a precision replacement for the original blend door actuator on the listed Toyota applications. The design focuses on matching factory fit, electrical connection, and operating function for dependable HVAC repair.
