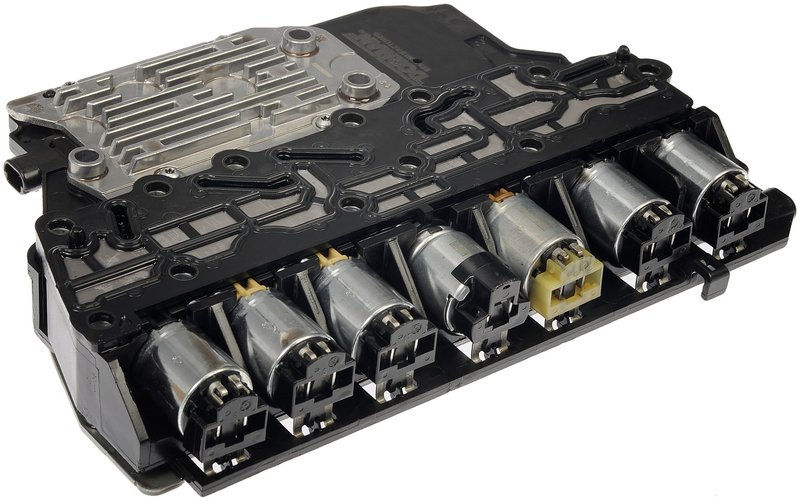

Dorman 609-016 Transmission Control Module
| Brand | Dorman 609-016 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Item Grade | Standard Replacement |
| Module Height (in) | 2 in |
| Module Length (In) | 10.5 in |
| Module Width (in) | 7 in |
| Mounting Hardware Included | No |
| Package Contents | 1 Transmission Control Module |
| Programming Required | Yes |
| Terminal Quantity | 15 |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Chevrolet and GMC · 2 vehicles |
OE FIX remanufactured. Delivers stock function and performance in a remanufactured module.
Upgraded plastic. Adds durability against heat and debris.
Programming required. Set up the module after installation.
Cross-references 19331562 for the same application. See all 1.
Dorman 609-016 Transmission Control Module
Restore transmission control with this Dorman OE FIX remanufactured transmission electro-hydraulic control module (TEHCM). It matches the stock unit’s function and performance while using upgraded plastic to improve resistance to heat and debris.
- Remanufactured transmission control module for OE-style replacement
- Programming required after installation
- 1 oval female connector with 15 blade terminals
- Standard replacement grade for direct service use
- Compact module size: 10.5 in. long, 7 in. wide, 2 in. high
- Cross-reference: 19331562
Vehicle Fitment
Compatible with 2010 Chevrolet Equinox and 2010 GMC Terrain. Fits 2010 Chevrolet Equinox, N/A; fits 2010 GMC Terrain, N/A.
Detailed Description
Dorman 609-016 is a remanufactured transmission control module built for vehicles that need a direct OE-style electronic and hydraulic transmission control solution. It is engineered to deliver the same operating function as the original component, with upgraded plastic construction that helps improve durability in high-heat, debris-prone environments. This part number 609-016 is a practical replacement for service work on 2010 Chevrolet Equinox and 2010 GMC Terrain applications.
The module uses a single oval female connector with 15 blade terminals and requires programming after installation. Because it is a transmission electro-hydraulic control module, correct calibration is essential for proper communication with the vehicle’s transmission system. Part number 609-016 also cross-references 19331562 for the same application.
What It Helps Fix
- Transmission shifting concerns caused by a failed control module
- Communication faults between the transmission and vehicle electronics
- Harsh, delayed, or inconsistent gear changes tied to module failure
- Warning lights related to transmission control system faults
- Drivability issues after internal module wear or heat damage
Installation Notes and Tips
Programming is required after installation, so the module must be calibrated with the correct vehicle-specific software. Verify connector style, terminal count, and mounting dimensions before installation. No mounting hardware or wiring harness is included, so reuse or source the needed vehicle-specific components as required.
Quality Assurance
This Dorman OE FIX remanufactured module is built as a standard replacement for OE service needs and uses upgraded materials to improve durability in demanding operating conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Chevrolet | Equinox | N/A | Reman |
| 2010 | GMC | Terrain | N/A | Reman |
