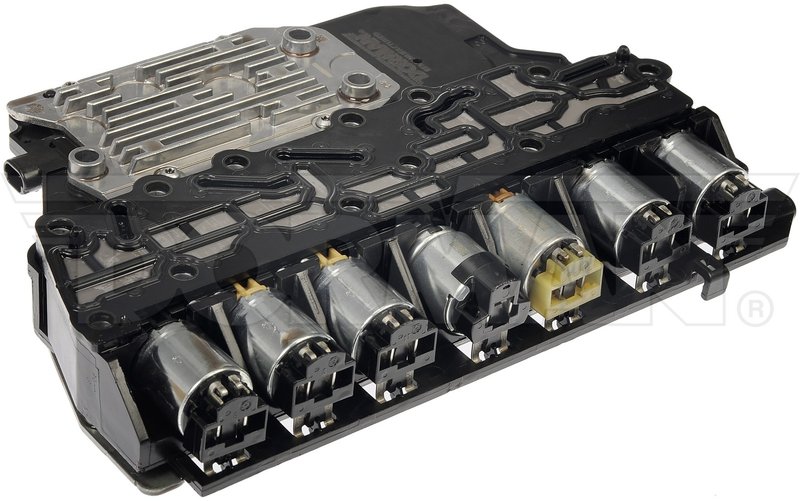

Dorman 609-019 Transmission Control Module

Reliable Transmission Control Module for Chevrolet Vehicles

The Dorman 609-019 Transmission Control Module is designed to provide precise control and reliable performance for select Chevrolet models. This standard replacement module is compatible with Chevrolet Captiva Sport, Cruze, and Sonic vehicles, ensuring proper transmission function and drivability.

• Programming required for vehicle-specific calibration
• Blade terminal type with 15 terminals for secure electrical connections
• Single oval-shaped female connector for easy integration
• Compact dimensions: 10.5 inches length, 7 inches width, and 2 inches height
• Standard replacement grade for dependable operation
• Mounting hardware and wiring harness not included

Product Details and Specifications

The Dorman 609-019 Transmission Control Module features a single female oval connector with 15 blade terminals, designed to interface seamlessly with the vehicle’s existing wiring harness. Its compact size allows for straightforward installation within the transmission system. This module requires professional programming to match the specific transmission parameters of Chevrolet Captiva Sport, Cruze, and Sonic models. The absence of mounting hardware and wiring harness means these components must be sourced separately or reused from the original module.

Compatible Chevrolet Models and Applications

This transmission control module is compatible with the following Chevrolet vehicles:

• Chevrolet Captiva Sport
• Chevrolet Cruze
• Chevrolet Sonic

It is designed to replace faulty or malfunctioning transmission control modules in these models, restoring proper transmission shifting and communication with the vehicle’s onboard systems.

Common Issues Addressed by This Module

• Erratic or harsh transmission shifting
• Transmission slipping or failure to engage gears
• Check engine light related to transmission faults
• Loss of communication between transmission and engine control unit
• Failure to start or limp mode activation due to transmission errors

Installation Notes and Recommendations

Installation of the Dorman 609-019 Transmission Control Module requires professional programming to ensure compatibility with the vehicle’s transmission system. It is recommended to have the module programmed and installed by a qualified automotive technician. Since mounting hardware and wiring harness are not included, verify the condition of existing components before installation. Proper handling of the blade terminals and connector is essential to avoid damage during installation.

Quality Assurance and Warranty Information

Dorman provides this transmission control module as a standard replacement part, meeting OEM specifications for fit and function. While mounting hardware and wiring harness are not included, the module itself is manufactured to maintain reliable performance. Please consult Dorman’s warranty policy for specific coverage details related to this part number 609-019.
