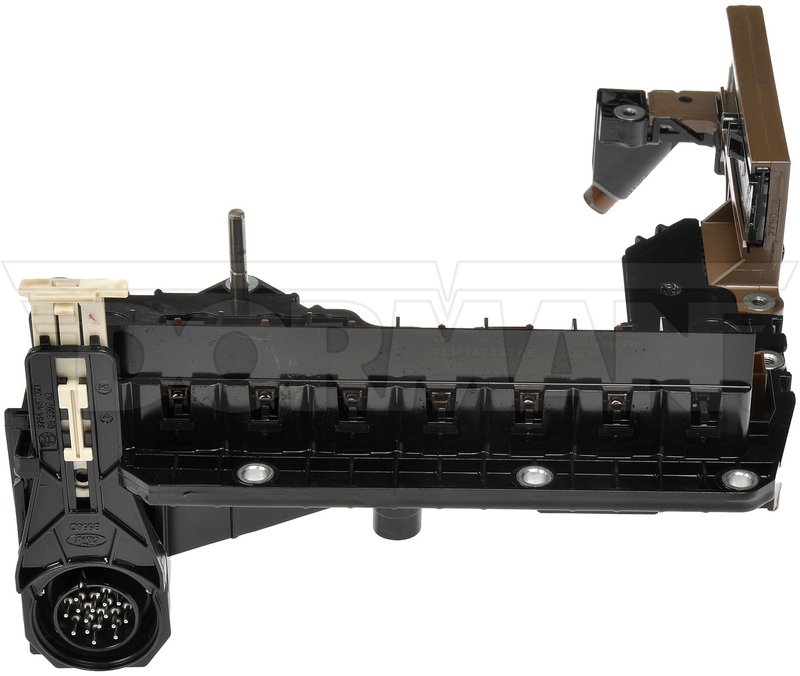

Dorman 609-024 Transmission Control Module
| Brand | Dorman 609-024 |
|---|---|
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Wire Quantity | 0 |
| Connector Quantity | 9 |
| Connector Shape | Rectangle |
| Connector Shape | Round |
| Terminal Quantity | 16 |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Item Grade | Standard replacement |
| Module Height (in) | 5.5 in |
| Module Length (In) | 9.75 in |
| Module Width (in) | 10.75 in |
| Package Contents | 1 remanufactured transmission control module |
| Fits | Ford, Lincoln, and Mercury · 22 vehicles |
Standard replacement. Fully tested and validated to match original module function and performance.
Remanufactured module. A remanufactured transmission control module for dependable electronic control.
Pin terminals. Features 9 connectors and 16 terminals for secure electrical connections.
Cross-references 7L1P14C247AE for the same application. See all 1.
Dorman 609-024 Transmission Control Module
Dorman 609-024 is a remanufactured transmission control module for select Ford, Lincoln, and Mercury applications. It is fully tested and validated to match the function and performance of the original TCM on specified vehicles, making it a direct-fit electronic replacement for drivability and transmission management concerns.
Key Features
- Remanufactured transmission control module for OE-style replacement
- Fully tested and validated to match original module function and performance
- Standard replacement grade for select Ford Explorer, Expedition, F-150, and related models
- Female connector design with 9 connectors, 16-pin and 2-pin terminal configurations
- Pin terminal type with rectangle and round connector shapes
- Module dimensions: 5.5 in. height, 9.75 in. length, 10.75 in. width
- Cross-reference part number: 7L1P14C247AE
Detailed Description
This Dorman transmission control module, part number 609-024, is built for vehicles that rely on precise electronic transmission control. It is a remanufactured standard replacement that has been tested to verify proper operation against the original TCM specification. Compatible With 2007-2011 Ford Expedition, 2008-2011 Lincoln Navigator, 2009-2010 Ford Explorer, 2009-2010 Ford Explorer Sport Trac, 2009-2010 Ford F-150, 2010 Lincoln Mark LT, 2009-2010 Mercury Mountaineer, and 2007-2008 Ford Explorer Sport Trac, with model-year notes where listed. It also fits 2012-2013 Ford Explorer, to 9/04/12. If you are searching for a Ford Explorer transmission control module, Ford F-150 TCM, or Lincoln Navigator control module replacement, Dorman 609-024 is a direct application-specific option.
What It Helps Address
- Transmission shifting problems caused by a failed control module
- Electronic communication faults within the transmission management system
- Drivability issues tied to incorrect shift timing or module output
- Diagnostic trouble codes related to TCM operation
- Need for a remanufactured OE-style replacement module
Installation Notes and Tips
Verify the connector count, terminal style, and module dimensions before installation. This module uses pin terminals and female connectors, and no mounting hardware is listed. Confirm the vehicle application and any date restrictions, including 2012-2013 Ford Explorer to 9/04/12 and 2010 Lincoln Mark LT to 11/03/10, before replacing the original unit. For best results, inspect related wiring and connectors for corrosion or damage before installing the replacement TCM.
Quality Assurance
Dorman validates this transmission control module to match the function and performance of the original unit on specified applications. Part number 609-024 is a remanufactured replacement built for consistent electronic control in supported Ford, Lincoln, and Mercury vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Ford | Explorer | — | — | N/A | To 9/04/12 |
| 2012 | Ford | Explorer | — | — | N/A | To 9/04/12 |
| 2011 | Ford | Expedition | — | — | N/A | — |
| 2011 | Lincoln | Navigator | — | — | N/A | — |
| 2010 | Ford | Expedition | — | — | N/A | — |
| 2010 | Ford | Explorer | — | — | N/A | — |
| 2010 | Ford | Explorer Sport Trac | — | — | N/A | — |
| 2010 | Ford | F-150 | — | — | N/A | — |
| 2010 | Lincoln | Mark LT | 5.4L | V8 | N/A | To 11/03/10 |
| 2010 | Lincoln | Navigator | — | — | N/A | — |
| 2010 | Mercury | Mountaineer | — | — | N/A | — |
| 2009 | Ford | Expedition | — | — | N/A | — |
| 2009 | Ford | Explorer | — | — | N/A | — |
| 2009 | Ford | Explorer Sport Trac | — | — | N/A | — |
| 2009 | Ford | F-150 | — | — | N/A | — |
| 2009 | Lincoln | Navigator | — | — | N/A | — |
| 2009 | Mercury | Mountaineer | — | — | N/A | — |
| 2008 | Ford | Expedition | — | — | N/A | — |
| 2008 | Ford | Explorer Sport Trac | — | — | N/A | To 8/13/08 |
| 2008 | Lincoln | Navigator | — | — | N/A | — |
| 2007 | Ford | Expedition | — | — | N/A | — |
| 2007 | Ford | Explorer Sport Trac | — | — | N/A | To 8/13/08 |
