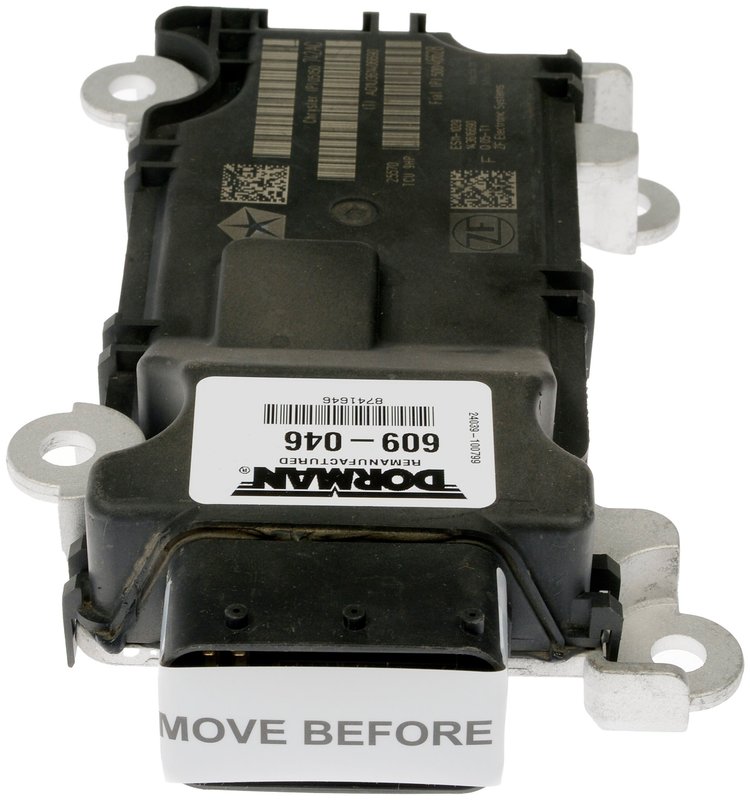

Dorman 609-046 Transmission Control Module
| Brand | Dorman 609-046 |
|---|---|
| Programming Required | Oui |
| Programming Required | Sí |
| Programming Required | Yes |
| Terminal Type | Blade pin |
| Terminal Type | Pasador de aspa |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Connector Shape | Redondo |
| Connector Shape | Round |
| Terminal Quantity | 58 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Altura del módulo (in) | 1.5 in |
| Ancho del módulo (in) | 5.25 in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard |
| Longitud del módulo (in) | 9 in |
| Module Height (in) | 1.5 in |
| Module Length (In) | 9 in |
| Module Width (in) | 5.25 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Chrysler, Fiat, Jeep, and Ram · 16 vehicles |
Fully tested and validated. Matches the function and performance of the original control module.
Standard replacement. A remanufactured transmission control module for straightforward service.
Programming required. Set up the module after installation for proper operation.
Cross-references 05150742AC, 68225514AA and 68225514AB for the same application. See all 3.
Dorman 609-046 Transmission Control Module
This Dorman transmission control module is a remanufactured OE-style replacement for select Ram, Jeep, Chrysler, and Fiat applications. It is fully tested and validated to match the function and performance of the original TCM on the listed vehicles, including Ram ProMaster City, Jeep Renegade, and Jeep Cherokee applications.
Key Features
- Remanufactured transmission control module for electronic transmission management
- Fully tested and validated to match original module function and performance
- Programming required after installation
- 1 female connector with 58 terminals and blade pin terminals
- Rectangle connector design
- Standard replacement grade for specified vehicle applications
- Part number 609-046 for direct reference and ordering
Detailed Description
The Dorman 609-046 transmission control module is built for vehicles that rely on precise electronic transmission control. It is a direct-fit replacement for select 2014-2019 Jeep Cherokee, 2015-2019 Ram ProMaster City, 2015-2018 Jeep Renegade, 2015-2016 Chrysler 200, and 2016 Fiat 500X applications. This module is remanufactured, tested, and validated to restore proper communication and control functions in the transmission system. Part number 609-046 is also referenced for related OE numbers in the same application family.
This part cross-references 05150742AC and 68225514AA for the same application.
What It Helps Address
- Transmission warning lights related to module faults
- Harsh, delayed, or inconsistent shifting caused by TCM failure
- Communication issues between the transmission and vehicle electronics
- Loss of proper transmission control strategy after module damage
- Driveability concerns tied to electronic transmission management
Installation Notes and Tips
- Programming is required after installation.
- Verify connector style, terminal count, and module dimensions before installation.
- Confirm vehicle application by year, make, model, and build date where noted.
- For 2015 Jeep Renegade, this application is listed only up to 11/02/15.
- Use the vehicle service information to complete setup and relearn procedures after replacement.
Quality Assurance
Dorman validates this transmission control module to match the function and performance of the original unit on the specified applications. The remanufactured design and standard replacement grade support a service-level repair for electronic transmission control on compatible Ram ProMaster City, Jeep Renegade, Jeep Cherokee, Chrysler 200, and Fiat 500X vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Ram | ProMaster City | — | — | N/A | — |
| 2018 | Jeep | Renegade | 1.4L | L4 | N/A | — |
| 2018 | Ram | ProMaster City | — | — | N/A | — |
| 2017 | Jeep | Cherokee | — | — | N/A | — |
| 2017 | Jeep | Renegade | 1.4L | L4 | N/A | — |
| 2017 | Ram | ProMaster City | — | — | N/A | — |
| 2016 | Chrysler | 200 | — | — | N/A | — |
| 2016 | Fiat | 500X | — | — | N/A | — |
| 2016 | Jeep | Cherokee | — | — | N/A | — |
| 2016 | Jeep | Renegade | 2.4L | L4 | N/A | To 11/02/15 |
| 2016 | Ram | ProMaster City | — | — | N/A | — |
| 2015 | Chrysler | 200 | — | — | N/A | — |
| 2015 | Jeep | Cherokee | — | — | N/A | — |
| 2015 | Jeep | Renegade | — | — | N/A | — |
| 2015 | Ram | ProMaster City | — | — | N/A | — |
| 2014 | Jeep | Cherokee | — | — | N/A | — |
