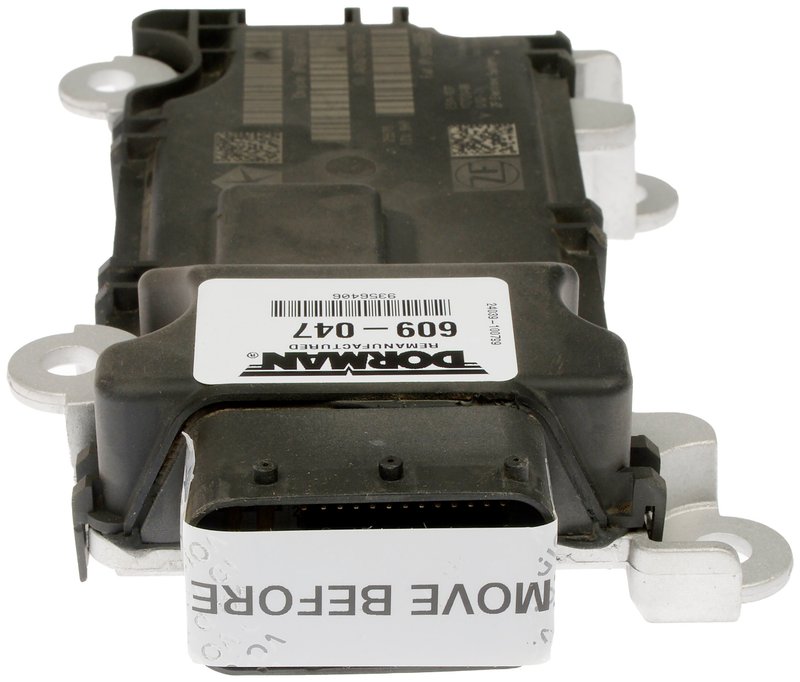

Dorman 609-047 Transmission Control Module
| Brand | Dorman 609-047 |
|---|---|
| Programming Required | Oui |
| Programming Required | Sí |
| Programming Required | Yes |
| Terminal Type | Blade pin |
| Terminal Type | Pasador de aspa |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Connector Shape | Redondo |
| Connector Shape | Round |
| Terminal Quantity | 58 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Altura del módulo (in) | 1.5 in |
| Ancho del módulo (in) | 5.25 in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard |
| Longitud del módulo (in) | 9 in |
| Module Height (in) | 1.5 in |
| Module Length (In) | 9 in |
| Module Width (in) | 5.25 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Chrysler, Fiat, and Jeep · 11 vehicles |
Fully tested. Validated to match original transmission control function and performance.
Programming required. Requires setup after installation for specified applications.
Remanufactured replacement. Standard-grade module for transmission control service.
Cross-references Mopar 68294441AA for the same application. See all 1.
Transmission Control Module Overview
This Dorman transmission control module is a remanufactured replacement for specified applications and is fully tested to match the function and performance of the original unit. It is built for vehicles that require programming after installation, making it a direct service part for transmission electronics repair.
Key Features
- Fully tested and validated to match original TCM function and performance.
- Remanufactured standard replacement for transmission control service.
- Female connector with a rectangular connector shape and blade pin terminals.
- Single-connector design with 58 terminals.
- Programming required after installation.
- Module dimensions: 9 in. long, 5.25 in. wide, and 1.5 in. high.
Detailed Description
Part number 609-047 is a Dorman transmission control module engineered for specified Jeep, Fiat, and Chrysler applications. It is a remanufactured standard replacement that has been fully tested and validated to match the original TCM’s function and performance. The module uses a female rectangular connector with blade pin terminals and is supplied without mounting hardware or a wiring harness. Part number 609-047 is listed for 2020 Jeep Renegade, 2017-2019 Jeep Renegade, 2018-2019 Jeep Cherokee, 2017-2019 Fiat 500X, and 2017 Chrysler 200 applications, with one 2016 Jeep Renegade fitment noted from 11/02/15. This part cross-references Mopar 68294441AA for the same application.
Common Issues This Part Can Address
- Transmission shifting concerns caused by a failed control module.
- Communication faults between the transmission and vehicle electronics.
- Driveability problems related to incorrect transmission control signals.
- Diagnostic trouble codes tied to TCM malfunction.
- Loss of proper transmission operation after module failure.
Installation Notes and Tips
Programming is required after installation. Verify the vehicle application, including the 2020 Jeep Renegade note for vehicles without a 3.73 axle ratio and the 2016 Jeep Renegade production note from 11/02/15, before ordering. Confirm connector style and terminal count against the original module before replacement.
Quality Assurance
This Dorman module is fully tested and validated to match original equipment function and performance on specified applications. It is a remanufactured standard replacement built for transmission control service.
| Year | Make | Model | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2020 | Jeep | Renegade | FWD | 1.3L | L4 | wo/3.73 Axle Ratio |
| 2019 | Fiat | 500X | — | — | — | — |
| 2019 | Jeep | Cherokee | — | — | — | — |
| 2019 | Jeep | Renegade | — | — | — | — |
| 2018 | Fiat | 500X | — | — | — | — |
| 2018 | Jeep | Cherokee | — | — | — | — |
| 2018 | Jeep | Renegade | — | 2.4L | L4 | — |
| 2017 | Chrysler | 200 | — | — | — | — |
| 2017 | Fiat | 500X | — | — | — | — |
| 2017 | Jeep | Renegade | — | 2.4L | L4 | — |
| 2016 | Jeep | Renegade | AWD | 2.4L | L4 | From 11/02/15 |
