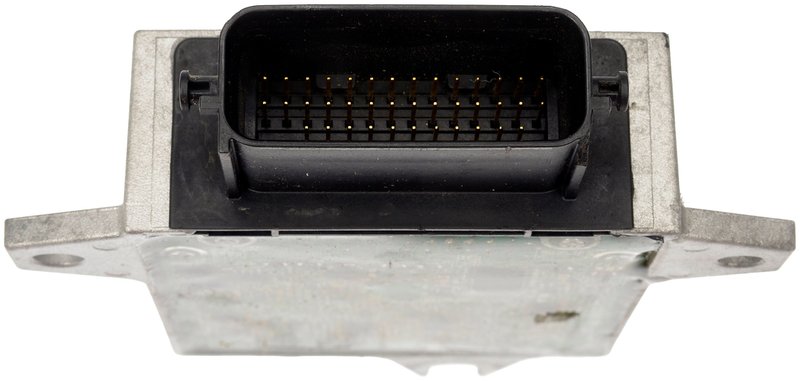

Dorman 609-065 Transmission Control Module
| Brand | Dorman 609-065 |
|---|---|
| Programming Required | No |
| Programming Required | Non |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Terminal Quantity | 39 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 1.5 in |
| Ancho del módulo (in) | 3in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard |
| Longitud del módulo (in) | 5.2 in |
| Module Height (in) | 1.5 in |
| Module Length (In) | 5.2 in |
| Module Width (in) | 3 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Mazda · 3 vehicles |
Fully tested. Validated to match original module function and performance.
No programming required. Installs without extra setup on specified applications.
Standard replacement. A remanufactured transmission control module.
Cross-references L34T189E1, L34T189E1A and L34T189E1B for the same application. See all 6.
Transmission Control Module for Mazda 3
This Dorman transmission control module is a remanufactured OE-style replacement for specified 2007-2009 Mazda 3 applications. Part number 609-065 is fully tested and validated to match the function and performance of the original TCM on the listed vehicle fitment.
- Fits 2007-2009 Mazda 3, N/A
- Remanufactured transmission control module for direct replacement use
- Fully tested and validated against original module function and performance
- No programming required
- 1 connector, rectangular shape, male terminal interface
- 39 terminals for the specified application
- Standard replacement grade
Product Details
Dorman 609-065 is built for drivers needing a replacement transmission control module for a 2007-2009 Mazda 3. It is a remanufactured unit with a single rectangular connector, 39 terminals, and a male terminal configuration. The module dimensions are 5.2 in. long, 3 in. wide, and 1.5 in. high, and it is supplied without mounting hardware or wiring harness. This part cross-references OE-style numbers such as L34T189E1 and L34T189E1A for the same application.
Common Issues This Part May Address
- Transmission shifting concerns caused by a failed control module
- Communication faults between the transmission and vehicle electronics
- Warning lights related to transmission control system errors
- Driveability problems tied to incorrect transmission command signals
- Loss of normal transmission operation on the listed Mazda 3 applications
Installation Notes and Tips
Verify connector style, terminal count, and module dimensions before installation. This unit does not require programming, which can simplify replacement on the specified Mazda 3 applications. Confirm vehicle year and application details against the fitment data before ordering, and inspect the related connectors and wiring for damage during service.
Quality Assurance
Dorman states that this transmission control module has been fully tested and validated to match the function and performance of the original TCM on the specified vehicle applications. Part number 609-065 is a remanufactured standard replacement built for the listed fitment.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2009 | Mazda | 3 | 2.3L | L4 | — |
| 2008 | Mazda | 3 | 2.3L | L4 | — |
| 2007 | Mazda | 3 | 2.3L | L4 | — |
