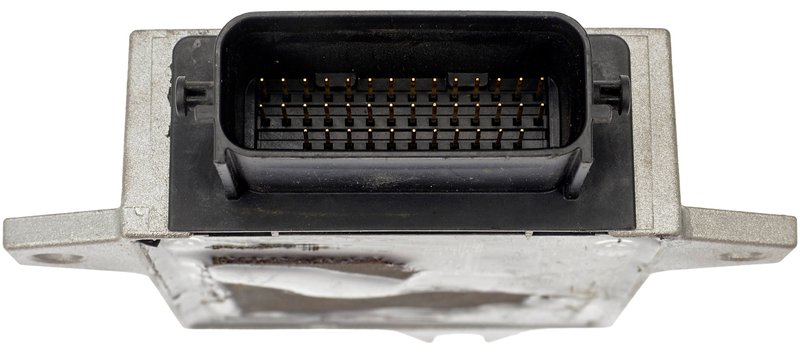

Dorman 609-066 Transmission Control Module
| Brand | Dorman 609-066 |
|---|---|
| Programming Required | No |
| Programming Required | Non |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Terminal Quantity | 39 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 1.5 in |
| Ancho del módulo (in) | 3in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard |
| Longitud del módulo (in) | 5.2 in |
| Module Height (in) | 1.5 in |
| Module Length (In) | 5.2 in |
| Module Width (in) | 3 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Mazda · 4 vehicles |
Fully tested and validated. Matches original module function and performance.
No programming required. Install without extra setup or calibration.
Standard replacement. Remanufactured transmission control module with one rectangular connector.
Cross-references L5E4189E1, L5E4189E1A and L5E4189E1B for the same application. See all 6.
Dorman 609-066 Transmission Control Module
The Dorman 609-066 transmission control module is a remanufactured replacement for select Mazda 5 applications from 2012-2015. It is fully tested and validated to match the function and performance of the original TCM on the specified vehicle fitment.
Built as a standard replacement module, this part is a direct solution for drivers and technicians servicing a Mazda 5 transmission electronics issue. The Dorman 609-066 is a single-connector, 39-terminal module with a rectangular male connector and no programming required.
Key Features
- Fits 2012-2015 Mazda 5, N/A
- Remanufactured transmission control module for OE-style replacement
- Fully tested and validated for function and performance
- No programming required after installation
- 1 connector, rectangular male design
- 39 terminals for specified vehicle applications
- Standard replacement grade
- Part number: 609-066
Detailed Description
This transmission control module is engineered for select Mazda 5 models and is built to restore transmission control electronics with a direct-fit replacement approach. The Dorman 609-066 matches the original module’s function on the listed applications and is supplied as a remanufactured standard replacement. For buyers searching for a Mazda 5 transmission control module, Dorman 609-066, or a remanufactured TCM for 2012-2015 Mazda 5, this part provides a focused OE-style solution.
This part cross-references OE numbers such as L5E4189E1 and L5E4189E1A for the same application.
Common Issues This Part Can Address
- Transmission control module failure codes
- Harsh or inconsistent shifting caused by electronic control faults
- No-start or drivability concerns tied to TCM malfunction
- Communication problems between the transmission system and vehicle electronics
- Replacement needs after module damage or internal electronic failure
Installation Notes and Tips
Verify the connector style, terminal count, and vehicle application before installation. This module does not require programming, which simplifies replacement on the listed Mazda 5 fitment. Confirm all related wiring and connectors are in good condition before installing the new module.
Quality Assurance
Dorman states that this module has been fully tested and validated to match the function and performance of the original transmission control module on the specified vehicle applications. Part number 609-066 is a remanufactured standard replacement built for the listed fitment.
| Year | Make | Model | Transmission | Notes |
|---|---|---|---|---|
| 2015 | Mazda | 5 | Automatic | — |
| 2014 | Mazda | 5 | Automatic | — |
| 2013 | Mazda | 5 | Automatic | — |
| 2012 | Mazda | 5 | Automatic | — |
