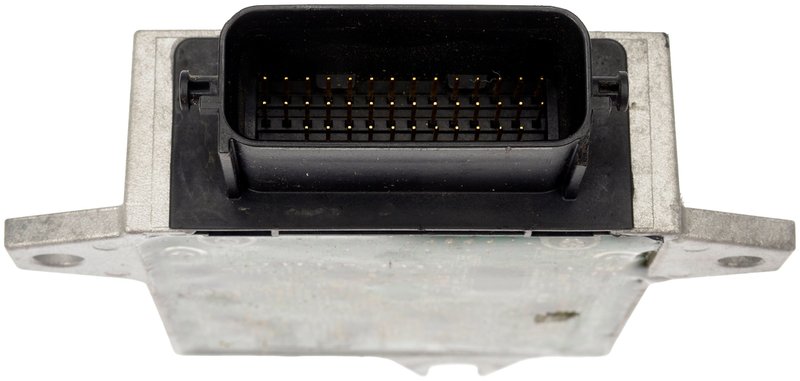

Dorman 609-070 Transmission Control Module
| Brand | Dorman 609-070 |
|---|---|
| Programming Required | No |
| Programming Required | Non |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Terminal Quantity | 39 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 1.5 in |
| Ancho del módulo (in) | 3in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard |
| Longitud del módulo (in) | 5.2 in |
| Module Height (in) | 1.5 in |
| Module Length (In) | 5.2 in |
| Module Width (in) | 3 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Mazda · 2 vehicles |
Fully tested and validated. Matches original module function and performance.
Standard replacement. A remanufactured transmission control module.
No programming required. Simplifies installation and setup.
Cross-references L539189E1A, L539189E1C and L539189E1D for the same application. See all 7.
Dorman 609-070 Transmission Control Module
The Dorman 609-070 transmission control module is a remanufactured replacement for select Mazda 3 applications. It is fully tested and validated to match the function and performance of the original TCM on the listed vehicle fitment.
Key Features
- Direct replacement transmission control module for select 2010-2011 Mazda 3 models
- Remanufactured unit with standard replacement grade construction
- No programming required after installation
- 1 rectangular male connector with 39 terminals
- Compact module dimensions: 5.2 in. length, 3 in. width, 1.5 in. height
- Brand part number 609-070 for catalog and service reference
Detailed Description
Built for select Mazda 3 vehicles, this Dorman 609-070 transmission control module restores electronic transmission management when the original module is no longer functioning correctly. The module is validated to match OE function and performance on the specified applications, making it a practical replacement for 2010-2011 Mazda 3 owners searching for a remanufactured transmission control module, Mazda 3 TCM replacement, or Dorman 609-070 transmission control module.
This part cross-references OE-style part numbers L539189E1A and L539189E1C for the same application.
What It Helps Address
- Transmission shifting concerns caused by a failed control module
- Electronic communication faults within the transmission control system
- Warning lights related to transmission control operation
- Driveability issues tied to incorrect transmission commands
- Need for a remanufactured OE-style replacement on select Mazda 3 vehicles
Installation Notes and Tips
Compatible With 2010-2011 Mazda 3, N/A. Verify connector style, terminal count, and module dimensions before installation. This unit uses one rectangular male connector with 39 terminals and does not include wiring harness or mounting hardware. No programming is required for the listed applications, which can simplify replacement on the correct vehicle.
Quality Assurance
Dorman validates this transmission control module to match the function and performance of the original unit on the specified vehicle applications. The remanufactured design and standard replacement grade support consistent service for the listed Mazda 3 fitment.
| Year | Make | Model | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2011 | Mazda | 3 | Automatic | 2.5L | L4 | — |
| 2010 | Mazda | 3 | Automatic | 2.5L | L4 | — |
