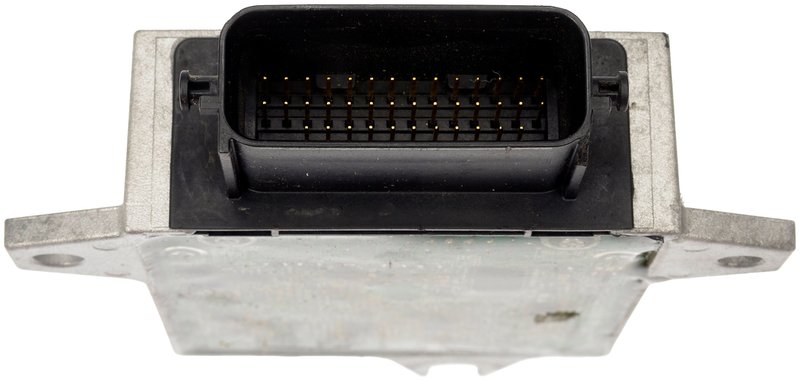

Dorman 609-072 Transmission Control Module
| Brand | Dorman 609-072 |
|---|---|
| Programming Required | No |
| Programming Required | Non |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Terminal Quantity | 39 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 1.5 in |
| Ancho del módulo (in) | 3in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard |
| Longitud del módulo (in) | 5.2 in |
| Module Height (in) | 1.5 in |
| Module Length (In) | 5.2 in |
| Module Width (in) | 3 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Mazda · 3 vehicles |
Fully tested. Validated to match original module function and performance.
No programming required. Install without extra coding or setup steps.
Standard replacement. A remanufactured transmission control module for routine service.
Cross-references L39C189E1B, L39C189E1C and L39C189E1D for the same application. See all 4.
Dorman 609-072 Transmission Control Module
Dorman 609-072 is a remanufactured transmission control module for select Mazda 5 models from 2008-2010. It is fully tested and validated to match the function and performance of the original TCM on the specified vehicle applications, with no programming required for installation.
Key Features
- Direct replacement transmission control module for select Mazda 5 applications
- Fully tested and validated to match original module function and performance
- No programming required
- 1 connector, rectangular shape, male terminal interface
- 39 terminals for OE-style electrical connection
- Standard replacement grade remanufactured module
- Connector quantity: 1
- Module dimensions: 5.2 in. length, 3 in. width, 1.5 in. height
Detailed Description
This Dorman transmission control module, part number 609-072, is built for 2008-2010 Mazda 5 vehicles and is intended to restore transmission control function using the original vehicle connection layout. The module is remanufactured and validated to match OE module behavior on the listed applications, making it a practical replacement for a failed factory TCM. This part cross-references OE numbers L39C189E1B and L39C189E1C for the same application.
Common Issues This Part May Resolve
- Transmission warning lights caused by a failed control module
- Harsh, delayed, or inconsistent shifting related to TCM malfunction
- Loss of transmission communication or control response
- Driveability concerns tied to electronic transmission management faults
- Replacement needs after module electrical failure or internal damage
Installation Notes and Tips
Verify connector style, terminal count, and module dimensions before installation. This module uses a single rectangular male connector with 39 terminals and does not require programming on the listed applications. Confirm vehicle year and model match the fitment data for 2008-2010 Mazda 5 before replacing the original unit.
Quality Assurance
Dorman validates this remanufactured transmission control module to match the function and performance of the original TCM on the specified vehicle applications. For buyers searching for a Mazda 5 transmission control module, Dorman 609-072 provides an OE-style replacement built around the listed fitment and electrical specifications.
| Year | Make | Model | Transmission | Notes |
|---|---|---|---|---|
| 2010 | Mazda | 5 | Automatic | — |
| 2009 | Mazda | 5 | Automatic | — |
| 2008 | Mazda | 5 | Automatic | — |
