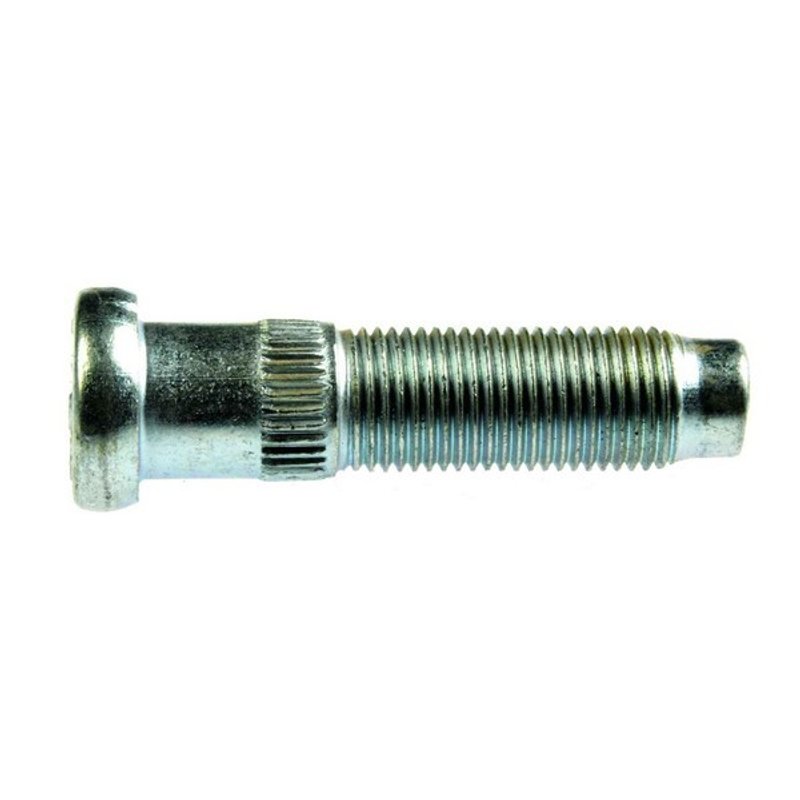

Dorman 610-380 Wheel Lug Stud - Front
| Brand | Dorman 610-380 |
|---|---|
| Position | Front |
| Bolt Grade | 8 |
| Color | Silver |
| Head Diameter | 0.862 in |
| Length | 2.3 |
| Material | Steel |
| Package Contents | 1 Stud |
| Quick-Start Nose | Yes |
| SAE or Metric | SAE |
| Shoulder Diameter | 0.6 |
| Shoulder Length (In) | 0.750 in |
| Splined Bore Diameter | 0.619 |
| Style | Serrated Stud |
| Thread Diameter | 0.5625 |
| Thread Direction | Clockwise |
| Thread Length (In) | 1.35 in |
| Thread Size | 9/16-18 |
| Threads Per Inch | 18 |
| Fits | Dodge · 6 vehicles |
Carbon steel construction. Built for strength, longevity, and safety.
Serrated stud design. Helps deliver a secure, dependable wheel connection.
SAE thread size. 9/16-18 threading for a precise hardware match.
Cross-references TYC 97295, 27891B and 4746896 for the same application. See all 4.
Dorman 610-380 Wheel Lug Stud for Ram 2500
Dorman 610-380 is a steel wheel lug stud built for front wheel service on select Dodge Ram 2500 trucks. It uses a 9/16-18 SAE thread, serrated stud design, and a quick-start nose to support secure wheel fastening on the specified application.
Key Features
- Steel construction for strength and durability
- Clockwise thread direction
- 9/16-18 thread size with 18 threads per inch
- Serrated stud style for a secure press-in fit
- Quick-start nose for easier lug nut engagement
- Silver finish
- Built to meet demanding automotive industry standards for strength, longevity, and safety
Detailed Description
This Dorman wheel lug stud, part number 610-380, is engineered for front position use on 1994-1999 Dodge Ram 2500 models with 7,500 lb. GVW. It features a 0.5625-inch thread diameter, 1.35-inch thread length, 0.750-inch shoulder length, and a 0.619-inch splined bore diameter. The 8-grade steel construction and serrated design help maintain a stable wheel attachment point in demanding service conditions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Helps Address
- Damaged or stripped wheel stud threads
- Broken or bent front wheel studs
- Loose wheel retention caused by worn stud splines
- Corrosion-related stud replacement needs
- Wheel service on a Dodge Ram 2500 with the correct 9/16-18 stud specification
Installation Notes and Tips
Fits 1994-1999 Dodge Ram 2500, front. Verify thread size, shoulder dimensions, and spline fit before installation. Press the serrated stud fully into the hub or flange so the splines seat correctly, and confirm lug nut engagement matches the 9/16-18 thread specification. For best results, inspect the mating hub surface and replace any worn or damaged hardware at the same time.
Quality Assurance
Dorman manufactures this wheel lug stud from carbon steel and tests it to demanding automotive industry standards to support strength, longevity, and safety. Part number 610-380 is intended for direct replacement use on the listed Dodge Ram 2500 front application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 2500 | 4WD | Front | 7,500 Lb. GVW; Package Quantity: 10; Thread Size: 9/16-18; Packaging Type: Box; Thread Length (In): 1.35 in |
| 1998 | Dodge | Ram 2500 | 4WD | Front | 7,500 Lb. GVW; Package Quantity: 10; Thread Size: 9/16-18; Packaging Type: Box; Thread Length (In): 1.35 in |
| 1997 | Dodge | Ram 2500 | 4WD | Front | 7,500 Lb. GVW; Package Quantity: 10; Thread Size: 9/16-18; Packaging Type: Box; Thread Length (In): 1.35 in |
| 1996 | Dodge | Ram 2500 | 4WD | Front | 7,500 Lb. GVW; Package Quantity: 10; Thread Size: 9/16-18; Packaging Type: Box; Thread Length (In): 1.35 in |
| 1995 | Dodge | Ram 2500 | 4WD | Front | 7,500 Lb. GVW; Package Quantity: 10; Thread Size: 9/16-18; Packaging Type: Box; Thread Length (In): 1.35 in |
| 1994 | Dodge | Ram 2500 | 4WD | Front | 7,500 Lb. GVW; Package Quantity: 10; Thread Size: 9/16-18; Packaging Type: Box; Thread Length (In): 1.35 in |
| No rows match your filter. | |||||
