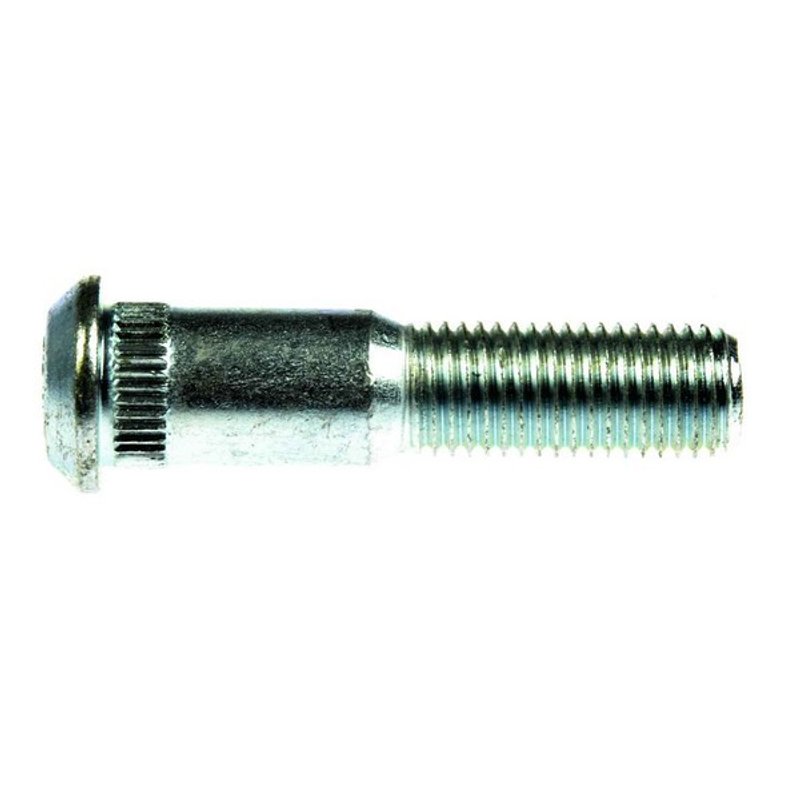

Dorman 610-463 Wheel Lug Stud - Rear
| Brand | Dorman 610-463 |
|---|---|
| Position | Rear |
| Head Diameter | 19 mm |
| Length | 2.165 |
| Material | Steel |
| Package Contents | 10 Studs |
| Quick-Start Nose | No |
| SAE or Metric | Metric |
| Shoulder Length (In) | 1.047 in |
| Splined Bore Diameter | 0.559 |
| Style | Serrated Stud |
| Thread Diameter | 12 |
| Thread Direction | Clockwise |
| Thread Length (In) | 27.5 mm |
| Thread Pitch | 1.5 |
| Thread Size | M12-1.50 |
| Fits | Pontiac and Toyota · 8 vehicles |
Carbon steel construction. Built for strength, longevity, and safety.
Serrated stud design. Helps deliver a secure wheel fastening.
Metric thread size. M12-1.50 threads for a precise fit.
Cross-references 28942B, 88970103 and 9094202078 for the same application. See all 4.
Dorman 610-463 Wheel Lug Stud
Dorman 610-463 is a metric wheel lug stud built from steel for rear wheel service on select Pontiac Vibe and Toyota Matrix models. It is engineered to meet demanding automotive industry standards for strength, longevity, and safety in wheel fastening applications.
- Steel construction for wheel hub fastening durability
- Metric M12-1.50 thread size with clockwise thread direction
- Serrated stud style helps secure the stud in the hub
- Head diameter: 19 mm
- Thread length: 27.5 mm
- Thread diameter: 12 mm
- Shoulder length: 1.047 in
- Splined bore diameter: 0.559 in
Fitment Details
Compatible with rear applications on select vehicles. Fits 2003-2006 Pontiac Vibe, rear. Fits 2003-2006 Toyota Matrix, rear. This part cross-references OE-style numbers such as 28942B and 9094202078 for the same application.
Product Overview
This Dorman wheel lug stud, part number 610-463, is a direct-fit hardware solution for rear wheel mounting service where an M12-1.50 serrated stud is specified. The steel construction and tested design support secure wheel attachment on Pontiac Vibe and Toyota Matrix rear applications, while the metric thread pitch and dimensions help match the original service requirements. If you are replacing a damaged or worn lug stud on a 2003-2006 Pontiac Vibe or 2003-2006 Toyota Matrix, Dorman 610-463 provides the key dimensions needed for a proper repair.
Common Repair Uses
- Broken or stripped wheel lug stud replacement
- Corrosion-related wheel fastener service
- Repair after wheel removal damage
- Restoring proper wheel retention on rear hubs
- Addressing thread wear on M12-1.50 wheel hardware
Installation Notes
Verify thread size, thread pitch, head diameter, and stud length before installation. Confirm rear fitment on the vehicle and inspect the hub or flange for damage before pressing in the new stud. Use proper wheel service procedures and torque the lug nuts to the vehicle manufacturer’s specification after installation.
Quality Assurance
Dorman manufactures this lug stud from carbon steel and tests it to demanding automotive industry standards for strength, longevity, and safety. Part number 610-463 is built for consistent wheel hardware service on the listed Pontiac Vibe and Toyota Matrix rear applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Pontiac | Vibe | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2006 | Toyota | Matrix | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2005 | Pontiac | Vibe | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2005 | Toyota | Matrix | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2004 | Pontiac | Vibe | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2004 | Toyota | Matrix | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2003 | Pontiac | Vibe | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
| 2003 | Toyota | Matrix | AWD | Rear | Package Quantity: 10; Thread Size: M12-1.50; Packaging Type: Box; Thread Length (In): 27.5 mm |
