Home› Tire and Wheel > Hardware, Fasteners and Fittings› Dorman 610-504 Wheel Lug Stud - Front or Rear
Dorman 610-504 Wheel Lug Stud - Front or RearOE Quality 60-Day Returns
Part #: 610-504

Dorman 610-504 Wheel Lug Stud - Front or Rear

Front and Rear
11 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$58.55Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Cadillac and Chevrolet, Camaro and CTS
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Wheel Lug Stud options

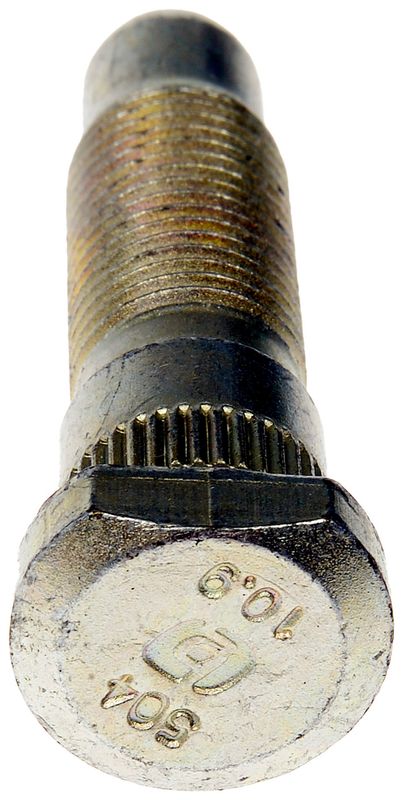

Dorman 610-504 Wheel Lug Stud

Dorman 610-504 is a metric wheel lug stud built from carbon steel and finished in zinc plating for corrosion resistance. It is a standard replacement wheel stud for select Cadillac CTS and Chevrolet Camaro applications, with fitment-specific thread length and serrated stud design for secure wheel retention.

Key Features

  • Carbon steel construction for strength and durability
  • Zinc-plated silver finish
  • Metric M14-1.50 fine thread
  • Clockwise (right-hand) thread direction
  • Serrated stud style with quick-start nose
  • Grade 10.9 standard replacement hardware
  • Under-head length: 58 mm; thread length: 1.02 in.
  • Compatible with select Cadillac CTS and Chevrolet Camaro fitments

Detailed Description

This Dorman wheel lug stud is engineered for wheel mounting service where a damaged, stretched, or corroded stud needs replacement. The carbon steel body and zinc-plated finish support long-term service in demanding automotive environments, while the serrated shoulder helps seat the stud in the hub during installation. Part number 610-504 is listed for 2012-2015 Chevrolet Camaro front, 2013-2014 Cadillac CTS front, 2015 Cadillac CTS rear, and 2009-2012 Cadillac CTS applications with the specified 1.02 in. thread length. This part cross-references 9598542 for the same application.

What It Helps Fix

  • Broken or stripped wheel studs
  • Corrosion at the wheel mounting point
  • Loose wheel fitment caused by worn threads
  • Damaged serrations that prevent proper stud seating
  • Service issues during brake or hub work on Cadillac CTS and Chevrolet Camaro models

Installation Notes and Tips

Verify thread size, thread pitch, shoulder diameter, and under-head length before installation. This stud uses M14-1.50 fine threads and a right-hand thread direction, so confirm the matching lug nut specification and hub design before service. Press-fit serrated studs should be installed with the correct tooling to avoid damaging the hub or stud shoulder. For fitment, use the listed position and year range exactly: Fits 2015 Cadillac CTS, rear; Fits 2012-2015 Chevrolet Camaro, front; Fits 2013-2014 Cadillac CTS, front; Fits 2009-2012 Cadillac CTS, N/A.

Quality Assurance

Dorman manufactures this wheel lug stud from carbon steel and tests it to demanding automotive industry standards for strength, longevity, and safety. Part number 610-504 is a standard replacement component built to meet the requirements of the listed vehicle applications.

BrandDorman
Part Number610-504
MaterialAcero al carbono
MaterialCarbon steel
Thread DirectionClockwise (right)
Thread DirectionRotar en el sentido de las agujas del reloj (derecha)
Length64
ColorPlateado
ColorSilver
Bolt Grade10.9
Grade TypeReemplazo estándar
Grade TypeStandard replacement
Thread TypeFine
Thread TypeFino
Shoulder Diameter15.3
Shoulder ShapeCilindro
Shoulder ShapeCylinder
Shoulder Thickness15.4
Thread SizeM14-1.50
Contenidos del paquete10 espárragos de la rueda
Diámetro de la rosca14 mm
Diámetro del nudo (in)0.62 in.
EstiloEspárrago dentado
FinishEnchapado en cinc
FinishZinc plated
Head Diameter21 mm
Head Diameter21mm
Knurl Diameter (In)0.62 in
Knurl Diameter (In)0.62 in.
Longitud de la rosca (in)1.02 in.
Longitud del reborde (in)0.55 in.
Nariz de inicio rápidoSí

This part fits 11 vehicles. Search below:

YearMakeModelSubmodelBody TypeLitersCylindersPositionNotes
2015CadillacCTS6.2LV8RearThread Length (In): 1.02 in
2015ChevroletCamaroZ/28Coupe7.0LV8FrontThread Length (In): 1.02 in
2014CadillacCTS6.2LV8FrontThread Length (In): 1.02 in
2014ChevroletCamaroConvertibleFrontThread Length (In): 1.02 in
2013CadillacCTS6.2LV8FrontThread Length (In): 1.02 in
2013ChevroletCamaroZL1ConvertibleFrontThread Length (In): 1.02 in
2012CadillacCTSVN/AThread Length (In): 1.02 in
2012ChevroletCamaroZL1FrontThread Length (In): 1.02 in
2011CadillacCTSVN/AThread Length (In): 1.02 in
2010CadillacCTSVN/AThread Length (In): 1.02 in
2009CadillacCTSVN/AThread Length (In): 1.02 in

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

9598542

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
