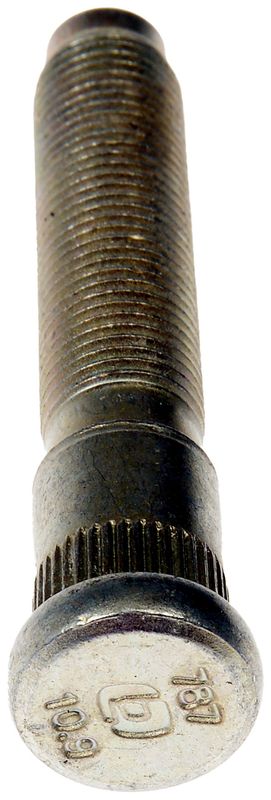

Dorman 610-787 Wheel Lug Stud - Rear
Dorman 610-787 Wheel Lug Stud
Dorman 610-787 is a metric wheel lug stud for rear applications on select Ford Super Duty trucks. Built from carbon steel with a zinc-plated silver finish, it is made to meet demanding automotive standards for strength, durability, and safety.
- Carbon steel construction for dependable wheel fastening performance
- Zinc-plated silver finish for added corrosion resistance
- Metric M14-1.50 fine thread with clockwise/right-hand thread direction
- Serrated stud style with a 15.4 mm shoulder diameter
- Under-head length: 82 mm; thread length: 1.929 in.
- Standard replacement wheel lug stud for rear fitment
- Fits 2017-2026 Ford F-350 Super Duty, rear
Fitment and Application Details
Compatible with 2017-2026 Ford F-350 Super Duty rear wheel applications, this Dorman 610-787 lug stud is specified for the rear position and uses a 14 mm thread diameter with 1.5 mm pitch. The serrated shoulder helps secure the stud in the hub, while the 20 mm head diameter and 10.9 bolt grade support a serviceable OE-style replacement for wheel service work on Ford F-350 Super Duty trucks.
This part cross-references HCPZ1107D for the same application.
Common Repair Uses
- Replacing a damaged, stretched, or corroded rear wheel stud
- Restoring proper wheel retention after lug nut or stud wear
- Addressing stripped threads on a rear hub stud
- Repairing wheel service issues on Ford F-350 Super Duty rear assemblies
Installation Notes
Verify thread size, pitch, shoulder diameter, and under-head length before installation. Press-fit serrated studs require correct hub preparation and proper seating depth to maintain clamp load. Confirm clockwise/right-hand thread orientation and rear-position application before returning the vehicle to service.
Quality Assurance
Dorman manufactures this wheel lug stud from carbon steel and tests it to automotive industry standards for strength, longevity, and safety. Part number 610-787 is a standard replacement component for rear wheel service on select Ford F-350 Super Duty models.
| Brand | Dorman |
|---|---|
| Part Number | 610-787 |
| Material | Acero al carbono |
| Material | Carbon steel |
| Thread Direction | Clockwise (right) |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Length | 87 |
| Color | Plateado |
| Color | Silver |
| Bolt Grade | 10.9 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Thread Type | Fine |
| Thread Type | Fino |
| Shoulder Diameter | 15.4 |
| Shoulder Shape | Cilindro |
| Shoulder Shape | Cylinder |
| Shoulder Thickness | 15.4 |
| Thread Size | M14-1.50 |
| Contenidos del paquete | 10 espárragos de la rueda |
| Diámetro de la rosca | 14 mm |
| Diámetro del nudo (in) | 0.62 in. |
| Estilo | Espárrago dentado |
| Finish | Enchapado en cinc |
| Finish | Zinc plated |
| Head Diameter | 20 mm |
| Head Diameter | 20mm |
| Knurl Diameter (In) | 0.62 in |
| Knurl Diameter (In) | 0.62 in. |
| Longitud de la rosca (in) | 1.929 in. |
| Longitud del reborde (in) | 0,86 mm |
| Nariz de inicio rápido | No |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2026 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2025 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2024 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2023 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2022 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2021 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2020 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2019 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2018 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
| 2017 | Ford | F-350 Super Duty | Rear | Thread Length (In): 1.929 in |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
